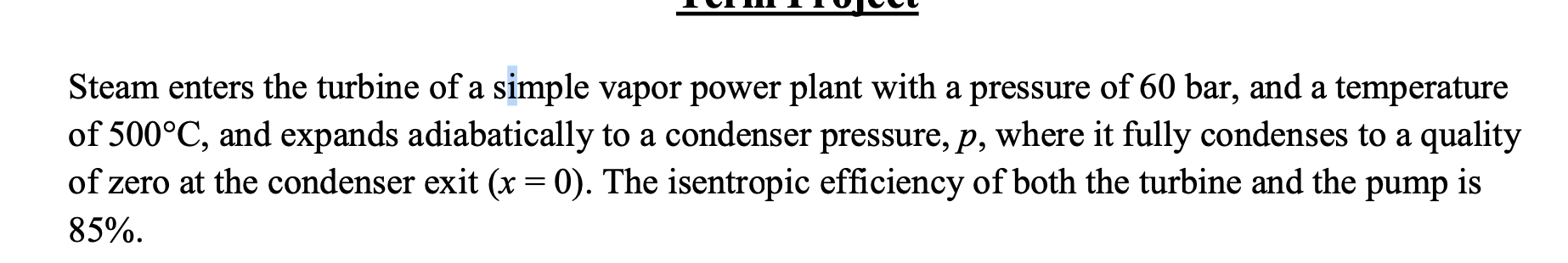

Steam Enters The Turbine Of A Simple Vapor Power Plant With A Pressure Of 60 Bar And A Temperature Of 500 C And Expand 1 (51.63 KiB) Viewed 30 times
What design operating point would you choose so that the cycle
has best performance?
Steam enters the turbine of a simple vapor power plant with a pressure of 60 bar, and a temperature of 500°C, and expands adiabatically to a condenser pressure, p, where it fully condenses to a quality of zero at the condenser exit (x = 0). The isentropic efficiency of both the turbine and the pump is 85%.
