The plane stress solution for a semi-infinite elastic solid under a concentrated point load, P is given using the follow

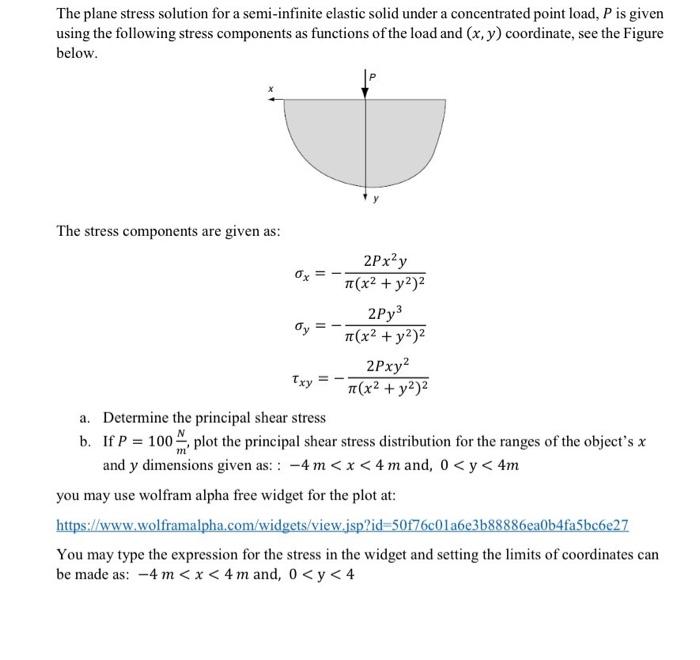

The plane stress solution for a semi-infinite elastic solid under a concentrated point load, P is given using the following stress components as functions of the load and (x, y) coordinate, see the Figure below. The stress components are given as: 2Pxy Ox TT(x2 + y2) 2Py3 y = TI(x2 + y2)2 2Pxy2 Txy (x2 + y2)2 a. Determine the principal shear stress b. If P = 100, plot the principal shear stress distribution for the ranges of the object's x and y dimensions given as: : -4 m < x < 4 mand, 0 < y < 4m you may use wolfram alpha free widget for the plot at: https://www.wolframalpha.com/widgets/vi ... 4fa5bc6e27 You may type the expression for the stress in the widget and setting the limits of coordinates can be made as: -4 m < x < 4 m and, 0 <y < 4
