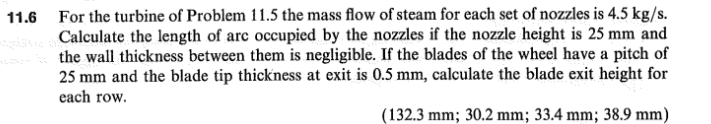

11.6 For the turbine of Problem 11.5 the mass flow of steam for each set of nozzles is 4.5 kg/s. Calculate the length of arc occupied by the nozzles if the nozzle height is 25 mm and the wall thickness between them is negligible. If the blades of the wheel have a pitch of 25 mm and the blade tip thickness at exit is 0.5 mm, calculate the blade exit height for each row. (132.3 mm; 30.2 mm; 33.4 mm; 38.9 mm)
