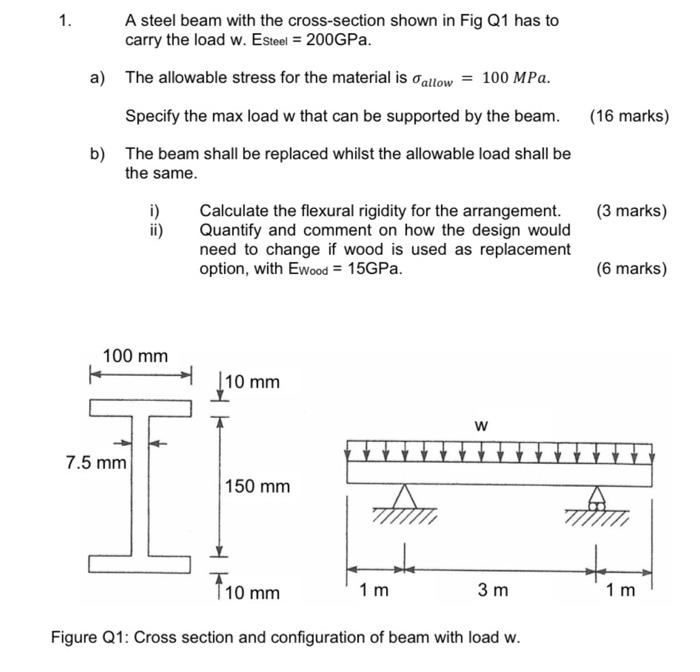

- 1 16 Marks A Steel Beam With The Cross Section Shown In Fig Q1 Has To Carry The Load W Esteel 200gpa A The Allow 1 (49.65 KiB) Viewed 29 times
1. (16 marks) A steel beam with the cross-section shown in Fig Q1 has to carry the load w. Esteel = 200GPa. a) The allow
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. (16 marks) A steel beam with the cross-section shown in Fig Q1 has to carry the load w. Esteel = 200GPa. a) The allow
1. (16 marks) A steel beam with the cross-section shown in Fig Q1 has to carry the load w. Esteel = 200GPa. a) The allowable stress for the material is allow = 100 MPa. Specify the max load w that can be supported by the beam. b) The beam shall be replaced whilst the allowable load shall be the same. i) Calculate the flexural rigidity for the arrangement. ii) Quantify and comment on how the design would need to change if wood is used as replacement option, with Ewood = 15GPa. (3 marks) (6 marks) 100 mm 10 mm T W 7.5 mm 150 mm ATA 710 mm 1 m 3 m 1 m Figure Q1: Cross section and configuration of beam with load w.
