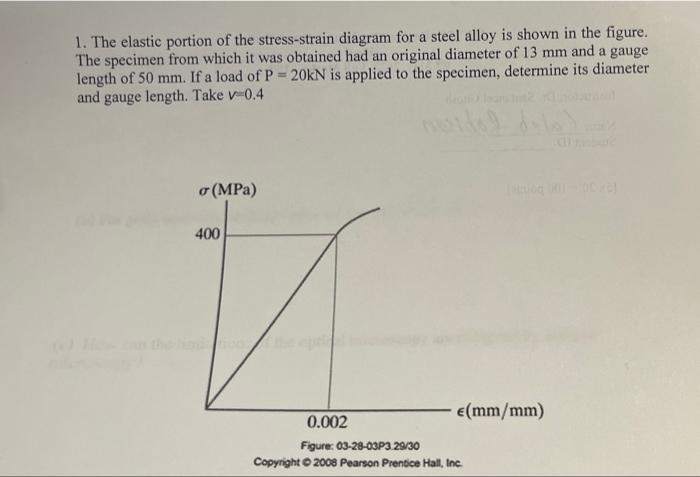

- 1 The Elastic Portion Of The Stress Strain Diagram For A Steel Alloy Is Shown In The Figure The Specimen From Which It 1 (27.08 KiB) Viewed 39 times
1. The elastic portion of the stress-strain diagram for a steel alloy is shown in the figure. The specimen from which it
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. The elastic portion of the stress-strain diagram for a steel alloy is shown in the figure. The specimen from which it
1. The elastic portion of the stress-strain diagram for a steel alloy is shown in the figure. The specimen from which it was obtained had an original diameter of 13 mm and a gauge length of 50 mm. If a load of P = 20KN is applied to the specimen, determine its diameter and gauge length. Take v=0.4 (MPa) 400 €(mm/mm) 0.002 Figure: 03-28-03P3 29/30 Copyright 2008 Pearson Prentice Hall, Inc
