A 120 mm diameter gear is being driven by a motor. The gear is driving another gear with a 700 N force (as shown). The 1

Post by answerhappygod »

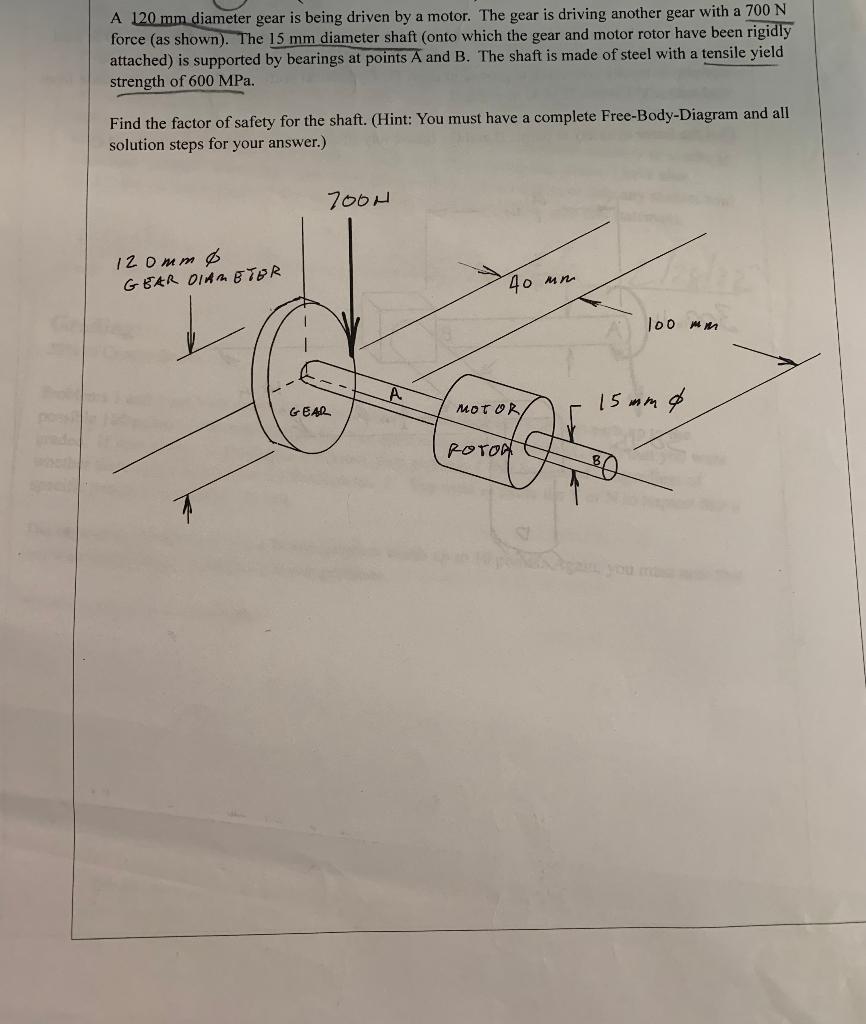

A 120 Mm Diameter Gear Is Being Driven By A Motor The Gear Is Driving Another Gear With A 700 N Force As Shown The 1 1
A 120 Mm Diameter Gear Is Being Driven By A Motor The Gear Is Driving Another Gear With A 700 N Force As Shown The 1 1 (70.79 KiB) Viewed 40 times
A 120 mm diameter gear is being driven by a motor. The gear is driving another gear with a 700 N force (as shown). The 15 mm diameter shaft (onto which the gear and motor rotor have been rigidly attached) is supported by bearings at points A and B. The shaft is made of steel with a tensile yield strength of 600 MPa. Find the factor of safety for the shaft. (Hint: You must have a complete Free-Body-Diagram and all solution steps for your answer.) TOON 120mm Ø GEAR OIAMETER 40 mn 100 mm А GEAR MOTOR 15 mm Ø ROTOR
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
