= 4. The steel tube seen below has an outer diameter do = 60mm and an inner diameter di = 50mm. It is subjected simultan

[answerhappygod]

4 The Steel Tube Seen Below Has An Outer Diameter Do 60mm And An Inner Diameter Di 50mm It Is Subjected Simultan 1 (141.28 KiB) Viewed 32 times

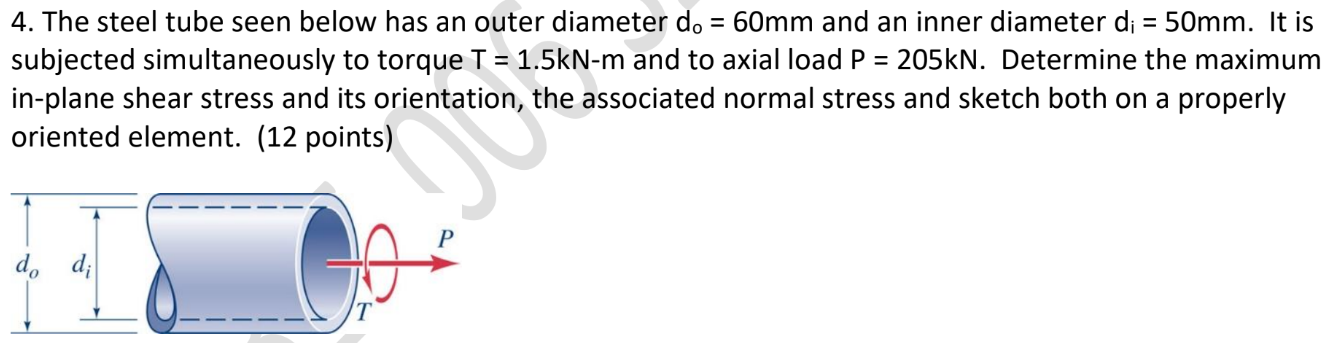

= 4. The steel tube seen below has an outer diameter do = 60mm and an inner diameter di = 50mm. It is subjected simultaneously to torque T = 1.5kN-m and to axial load P = 205kN. Determine the maximum in-plane shear stress and its orientation, the associated normal stress and sketch both on a properly oriented element. (12 points) Jon do d;
