Nyquist plot. K K G(8) (s +10)(8 + 2)(8 - 1)33+ 1182 +88 - 20 Below is the Nyquist plot for the open loop transfer funct

[answerhappygod]

Nyquist Plot K K G 8 S 10 8 2 8 1 33 1182 88 20 Below Is The Nyquist Plot For The Open Loop Transfer Funct 1 (97.62 KiB) Viewed 42 times

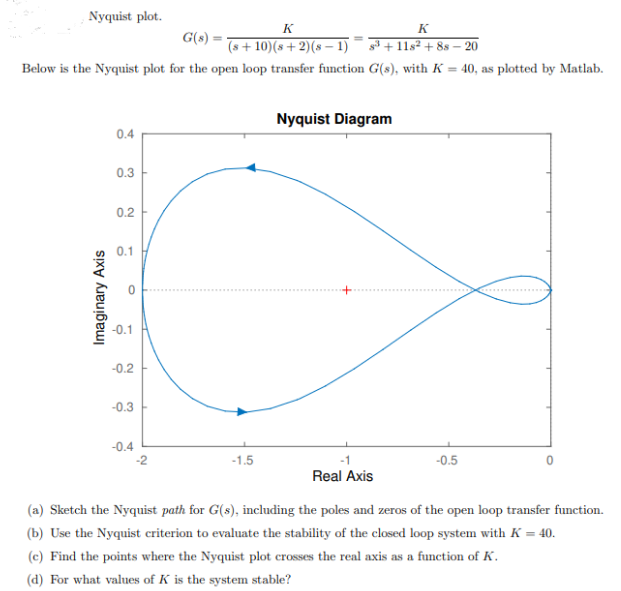

Nyquist plot. K K G(8) (s +10)(8 + 2)(8 - 1)33+ 1182 +88 - 20 Below is the Nyquist plot for the open loop transfer function (), with K = 40, as plotted by Matlab. Nyquist Diagram 0.4 0.3 0.2 0.1 Imaginary Axis -0.2 -0.3 -0.4 -1.5 -0.5 Real Axis (a) Sketch the Nyquist path for G(s), including the poles and zeros of the open loop transfer function. (b) Use the Nyquist criterion to evaluate the stability of the closed loop system with K = 40. (c) Find the points where the Nyquist plot crosses the real axis as a function of K. (d) For what values of K is the system stable?
