Solve The Plane Truss Problem Pictured Below All Bars Have Identical E And A Values Use A Values E 210 Gpa A 1e 4 M2 1 (32.12 KiB) Viewed 35 times
Solve The Plane Truss Problem Pictured Below All Bars Have Identical E And A Values Use A Values E 210 Gpa A 1e 4 M2 2 (149.27 KiB) Viewed 35 times
Solve The Plane Truss Problem Pictured Below All Bars Have Identical E And A Values Use A Values E 210 Gpa A 1e 4 M2 3 (129.17 KiB) Viewed 35 times
using the plane truss above to solve the assessments please. Can label everything clearly please to get U, F, check sigma
Solve The Plane Truss Problem Pictured Below All Bars Have Identical E And A Values Use A Values E 210 Gpa A 1e 4 M2 4 (47.39 KiB) Viewed 35 times

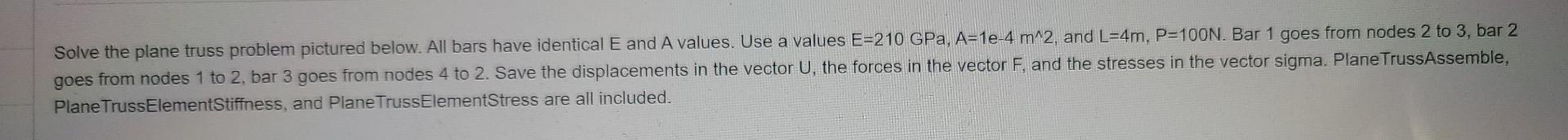

Solve the plane truss problem pictured below. All bars have identical E and A values. Use a values E=210 GPa, A=1e-4 m2, and L=4m, P=100N. Bar 1 goes from nodes 2 to 3, bar 2 goes from nodes 1 to 2. bar 3 goes from nodes 4 to 2. Save the displacements in the vector U, the forces in the vector F, and the stresses in the vector sigma. Plane TrussAssemble, Plane TrussElementStiffness, and Plane Truss ElementStress are all included.
L L 3 1 4 L N Р

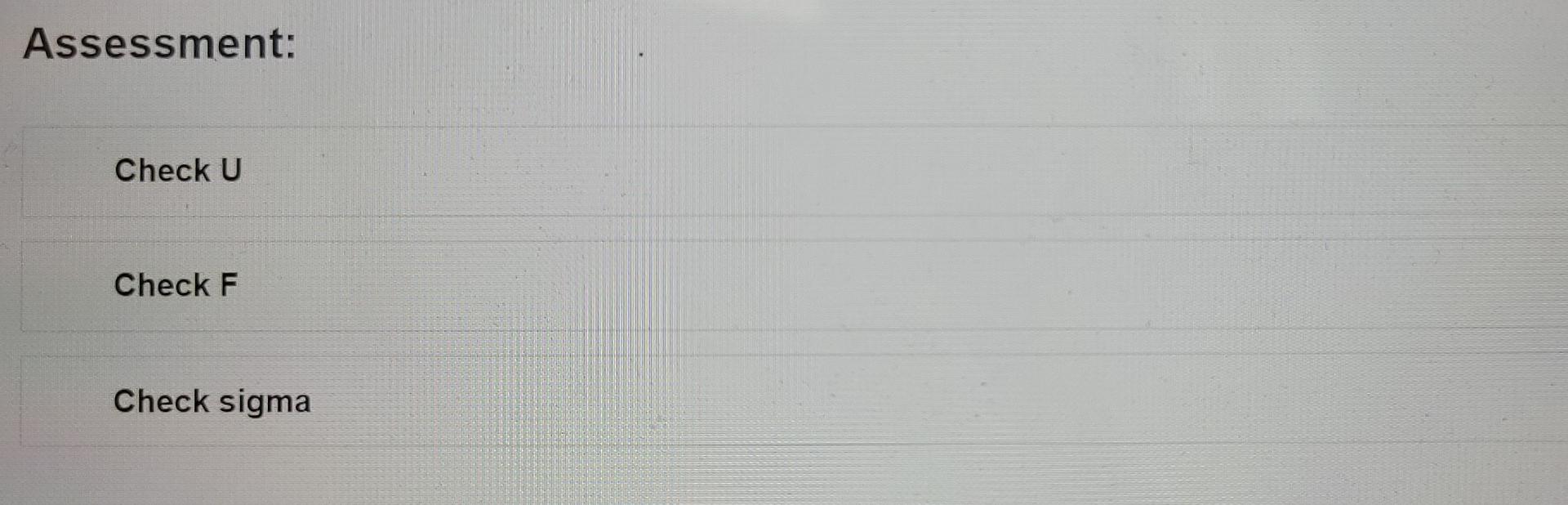

Assessment: Check U Check F Check sigma

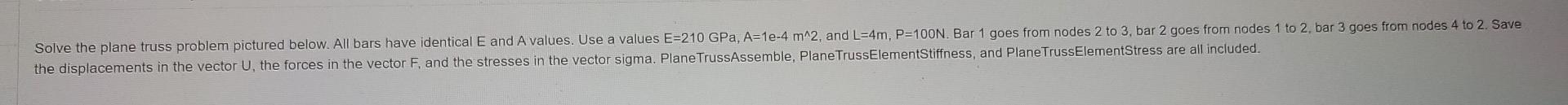

Solve the plane truss problem pictured below. All bars have identical E and A values. Use a values E=210 GPa, A=1e-4 m^2, and L=4m, P=100N. Bar 1 goes from nodes 2 to 3, bar 2 goes from nodes 1 to 2. bar 3 goes from nodes 4 to 2. Save the displacements in the vector U, the forces in the vector F, and the stresses in the vector sigma. Plane TrussAssemble, Plane TrussElementStiffness, and Plane TrussElementStress are all included.
