Steel Brass Titanium Ati = 515 mm2 = 2 Ast = 200 mm2 Abr = 450 mm? 300 mm -200 mm 100 mm = Problem 1: Three bars each

[answerhappygod]

Steel Brass Titanium Ati 515 Mm2 2 Ast 200 Mm2 Abr 450 Mm 300 Mm 200 Mm 100 Mm Problem 1 Three Bars Each 1 (31.1 KiB) Viewed 38 times

Steel Brass Titanium Ati 515 Mm2 2 Ast 200 Mm2 Abr 450 Mm 300 Mm 200 Mm 100 Mm Problem 1 Three Bars Each 2 (50.18 KiB) Viewed 38 times

br=E=101
coef of therm= 18
st=E=200
coef of therm=12
ti=E=120
coef of therm =9.4

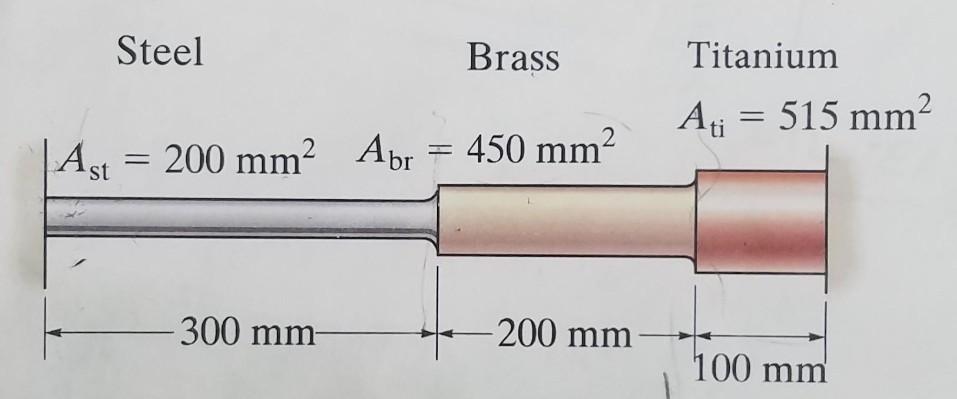

Steel Brass Titanium Ati = 515 mm2 = 2 Ast = 200 mm2 Abr = 450 mm? 300 mm -200 mm 100 mm

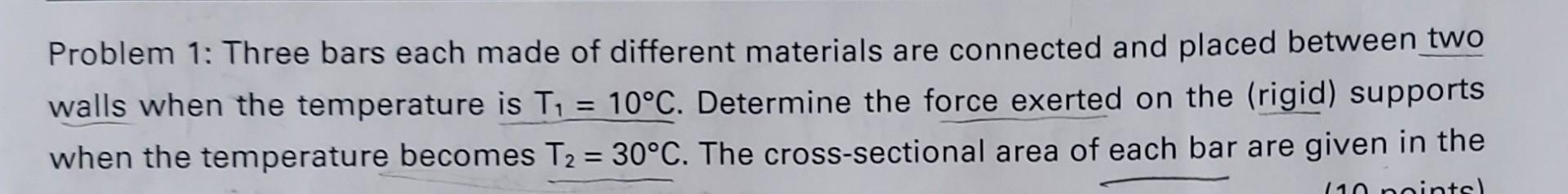

= Problem 1: Three bars each made of different materials are connected and placed between two walls when the temperature is Ti = 10°C. Determine the force exerted on the (rigid) supports when the temperature becomes T2 = 30°C. The cross-sectional area of each bar are given in the (10 nninta)
