Example 12.2 The bracket shown in Fig. 12.15 carries an offset load of 5 kN. Determine the resultant shear forces in the

Post by answerhappygod »

Example 12 2 The Bracket Shown In Fig 12 15 Carries An Offset Load Of 5 Kn Determine The Resultant Shear Forces In The 1
Example 12 2 The Bracket Shown In Fig 12 15 Carries An Offset Load Of 5 Kn Determine The Resultant Shear Forces In The 1 (37.28 KiB) Viewed 41 times

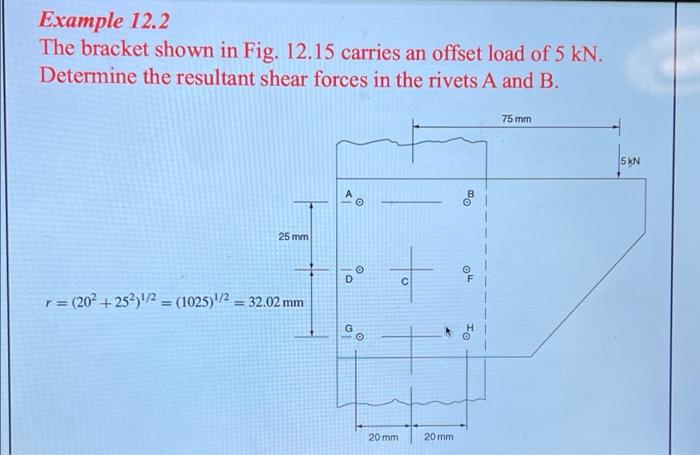

Example 12.2 The bracket shown in Fig. 12.15 carries an offset load of 5 kN. Determine the resultant shear forces in the rivets A and B. 75 mm - 5kN B 25 mm D 0 = (202 +252)/2 = (1025)/2 = 32.02 mm G O 20 mm 20 mm
