A C B Figure 1

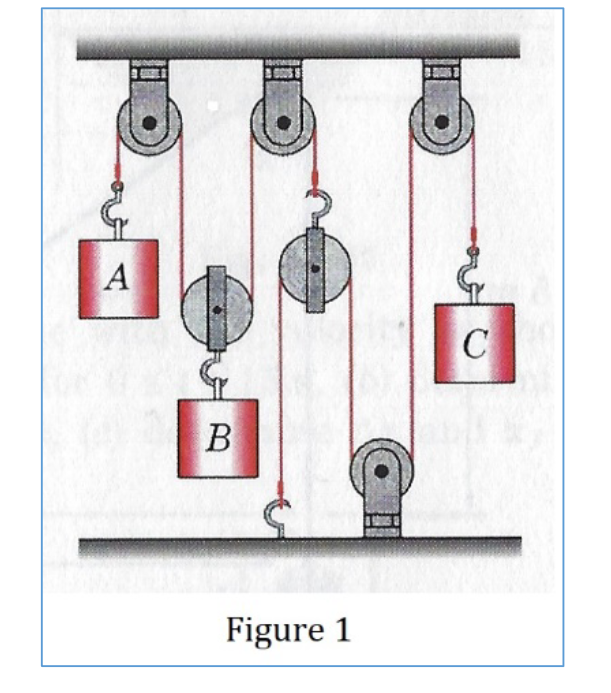

Figure 1 shows a pulley system. At the instant shown, the velocities of Blocks A and Care VA = 4 ft/s up and Vc =7 ft/s down. In the question that follows, select the answer that is closest to the true value. At this instant what is the velocity of Block B in units of ft/s ? 1.25 1.75 0.75 O 0.25
