The Ingula Pumped Storage Scheme (previously named Braamhoek) is a pumped-storage power station in the escarpment of the

[answerhappygod]

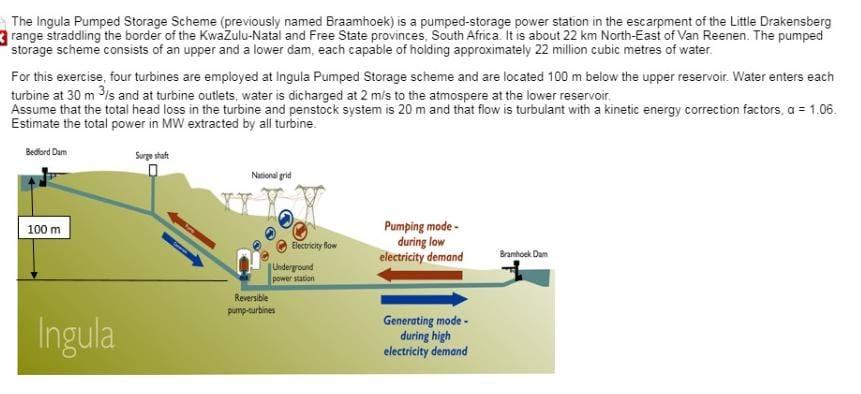

The Ingula Pumped Storage Scheme Previously Named Braamhoek Is A Pumped Storage Power Station In The Escarpment Of The 1 (46.17 KiB) Viewed 99 times

The Ingula Pumped Storage Scheme (previously named Braamhoek) is a pumped-storage power station in the escarpment of the Little Drakensberg range straddling the border of the KwaZulu-Natal and Free State provinces South Africa. It is about 22 km North-East of Van Reenen. The pumped storage scheme consists of an upper and a lower dam, each capable of holding approximately 22 million cubic metres of water. For this exercise, four turbines are employed at Ingula Pumped Storage scheme and are located 100 m below the upper reservoir. Water enters each turbine at 30 m 3ls and at turbine outlets, water is dicharged at 2 m/s to the atmospere at the lower reservoir. Assume that the total head loss in the turbine and penstock system is 20 m and that flow is turbulant with a kinetic energy correction factors, a = 1.06. Estimate the total power in MW extracted by all turbine. Bedford Dum Surge shaft 0 National grill 100 m Electricity Bow Pumping mode - during low electricity demand Bramhoek Dun Underground power son Reversible pump-turbines Ingula Generating mode - during high electricity demand
