Please find Sigx; Tauxy ; Sig1 ; Thetap1; Sig2; Thetap2; Taumax
at the cut m---m. (please use locations A, B, and D)
P = 10800 lb , Ra = 3600 lb , Rb = 7200 lb
V = 3600 lb , M = 2700 lb-ft
Please Find Sigx Tauxy Sig1 Thetap1 Sig2 Thetap2 Taumax At The Cut M M Please Use Locations A B And D P 1 (485 KiB) Viewed 43 times
Please Find Sigx Tauxy Sig1 Thetap1 Sig2 Thetap2 Taumax At The Cut M M Please Use Locations A B And D P 2 (291.57 KiB) Viewed 43 times

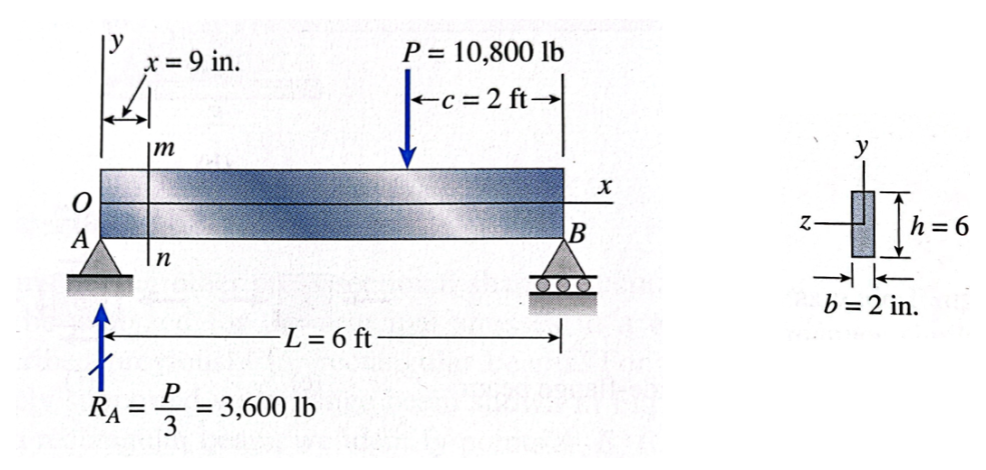

x = 9 in. P = 10,800 lb c = 2 ft - for im х 0 Z L h = 6 A B n b = 2 in. L=6 ft f § - RA Р = 3,600 lb

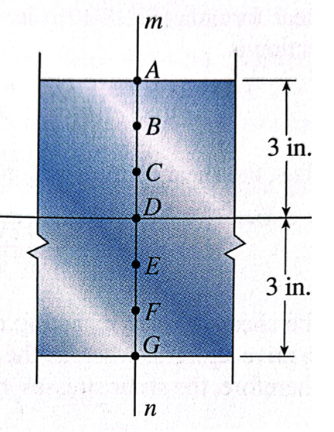

m A B 3 in. С D E 3 in. TF G n
