W w с B 2a a)Determine the displacement at point C b) Find the Equation of the elastic curve for the adjacent beam. c)Fi

Post by answerhappygod »

1
1 (176.83 KiB) Viewed 40 times

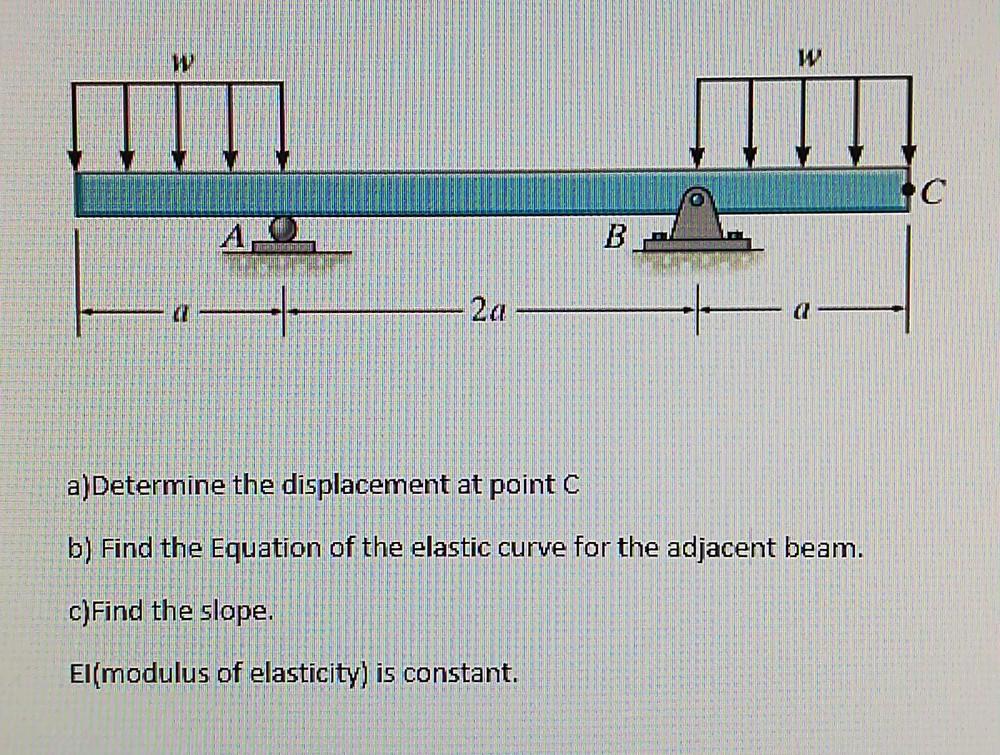

W w с B 2a a)Determine the displacement at point C b) Find the Equation of the elastic curve for the adjacent beam. c)Find the slope. El(modulus of elasticity) is constant.
