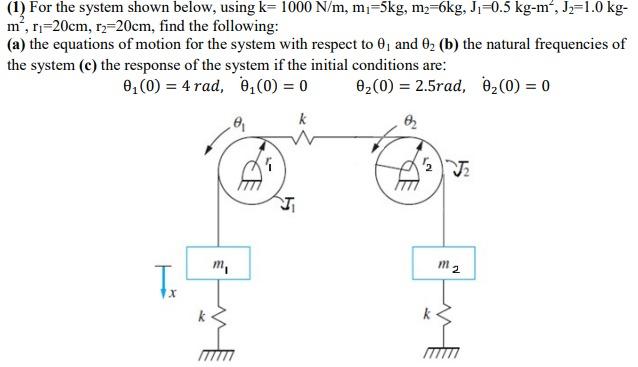

(1) For the system shown below, using k=1000 N/m, m-5kg, m2=6kg, J;=0.5 kg-m', J2=1.0 kg- m”, n=20cm, rz=20cm, find the

[answerhappygod]

1 For The System Shown Below Using K 1000 N M M 5kg M2 6kg J 0 5 Kg M J2 1 0 Kg M N 20cm Rz 20cm Find The 1 (28.39 KiB) Viewed 39 times

(1) For the system shown below, using k=1000 N/m, m-5kg, m2=6kg, J;=0.5 kg-m', J2=1.0 kg- m”, n=20cm, rz=20cm, find the following: (a) the equations of motion for the system with respect to 0, and 02 (b) the natural frequencies of the system (e) the response of the system if the initial conditions are: 0,0) = 4 rad, 0,0) = 0 020) = 2.5rad, 0,0) = 0 k 22 m. m 2 To k
