- The Root Locus Plot Given Below Is For A System With A Transfer Function As Follows K S 1 Gh S S 3 8 4 Root Locu 1 (21.77 KiB) Viewed 38 times
The root locus plot given below is for a system with a transfer function as follows: K(s + 1) GH s(s+3)(8 + 4) Root Locu
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The root locus plot given below is for a system with a transfer function as follows: K(s + 1) GH s(s+3)(8 + 4) Root Locu

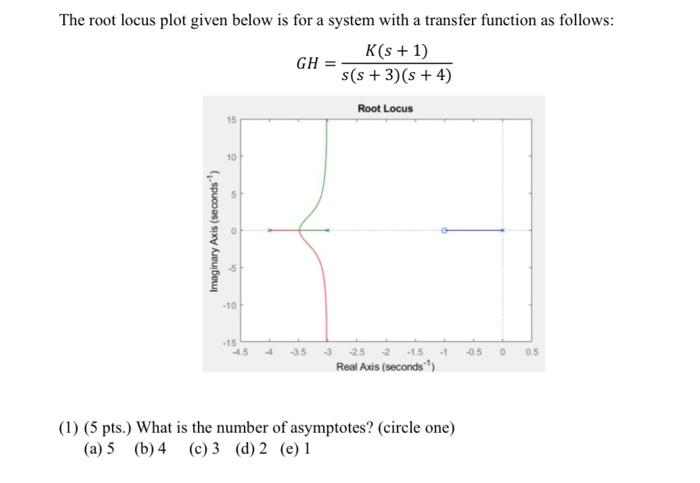

The root locus plot given below is for a system with a transfer function as follows: K(s + 1) GH s(s+3)(8 + 4) Root Locus 15 10 Imaginary Axis (seconds) -10 -15 45 -0.500.5 35 3 25 2 4.5 Real Axis (seconds) (1) (5 pts.) What is the number of asymptotes? (circle one) (a) 5 (b) 4 (c) 3 (d) 2 (e) 1
