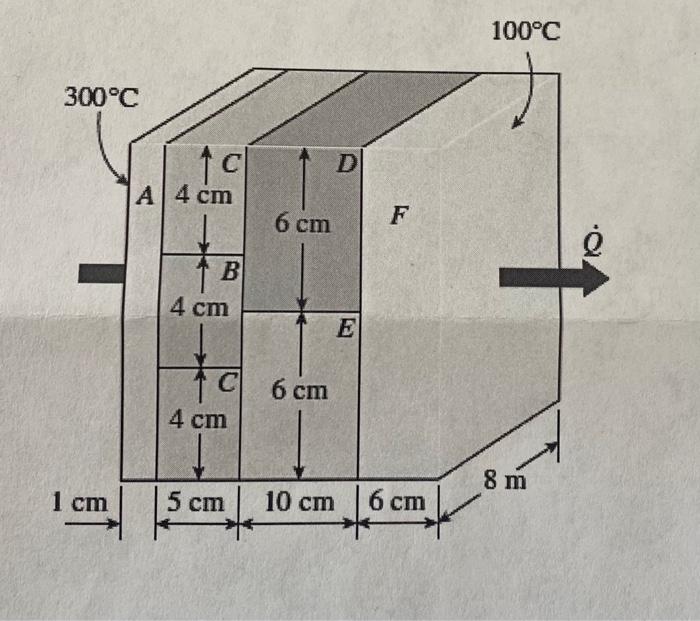

figure. The thermal conductivities of the various materials used, in W/m - °C, are:
KA= kr = 4,
KB=6,
kc = 16,
kD= 12 and kE=36.
The left and right wall surfaces are maintained at the uniform temperatures of 300°C and 100°C, respectively.
of 300°C and 100°C, respectively. If the heat transfer through the wall is one-dimensional, determine a) the heat transfer rate through the wall; b) the heat transfer rate through the wall; and c) the heat transfer rate through the wall.
heat transfer rate through it; b) the temperature at the point where sections B,
D and E, and c) the temperature drop across section F. Neglect any contact resistances between the interfaces.
interfaces.
