estion 3: In a four-bar mechanism, find the angular velocity and acceleration of QR. (marks 3+3) • PS is fixed and 300mm

Post by answerhappygod »

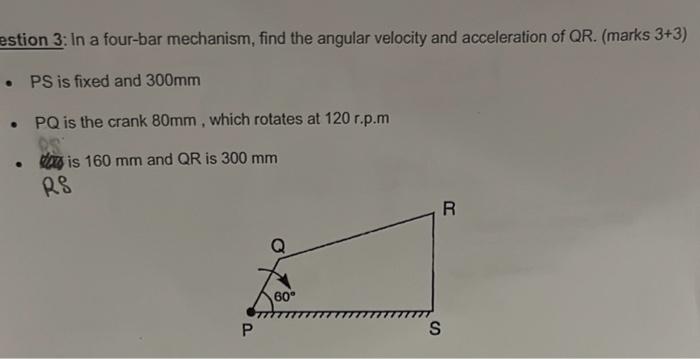

Estion 3 In A Four Bar Mechanism Find The Angular Velocity And Acceleration Of Qr Marks 3 3 Ps Is Fixed And 300mm 1
Estion 3 In A Four Bar Mechanism Find The Angular Velocity And Acceleration Of Qr Marks 3 3 Ps Is Fixed And 300mm 1 (16.29 KiB) Viewed 49 times
estion 3: In a four-bar mechanism, find the angular velocity and acceleration of QR. (marks 3+3) • PS is fixed and 300mm . • PQ is the crank 80mm, which rotates at 120 r.p.m • Wat is 160 mm and QR is 300 mm RS R 60° Р S
