2 in. 1. The built-up beam shown is made up by gluing together two x 10-in. plywood strips and two 2 X 4-in. planks. Kno

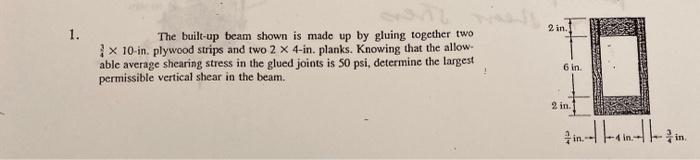

2 in. 1. The built-up beam shown is made up by gluing together two x 10-in. plywood strips and two 2 X 4-in. planks. Knowing that the allow able average shearing stress in the glued joints is 50 psi, determine the largest permissible vertical shear in the beam. 6 in 2 in. SASTOT fin.--| ---- in
