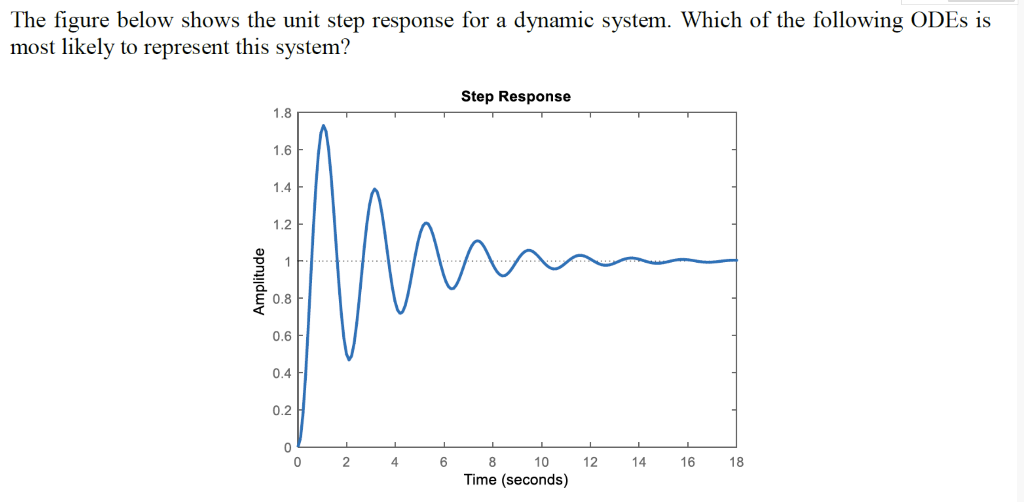

The figure below shows the unit step response for a dynamic system. Which of the following ODEs is most likely to represent this system? Step Response 1.8 1.6 1.4 1.2 1 Amplitude 0.8 0.6 0.4 0.2 1 0 0 2 4 6 12 14 16 18 8 10 Time (seconds)
+0.018 + x =U O. 2ï +1.2.x +18x =u 2ï +1.2.8 +18x = 18u Ï + 2x + x=u
