- The State Of Stress At A Point In A Loaded Structure Is Illustrated Below Ox 20 0y 90 Txy 60 Ksi 90 Ksi 60 Ks 1 (28.97 KiB) Viewed 56 times
The state of stress at a point in a loaded structure is illustrated below. (Ox = -20,0y = 90,Txy = 60) ksi. 90 ksi 60 ks
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The state of stress at a point in a loaded structure is illustrated below. (Ox = -20,0y = 90,Txy = 60) ksi. 90 ksi 60 ks

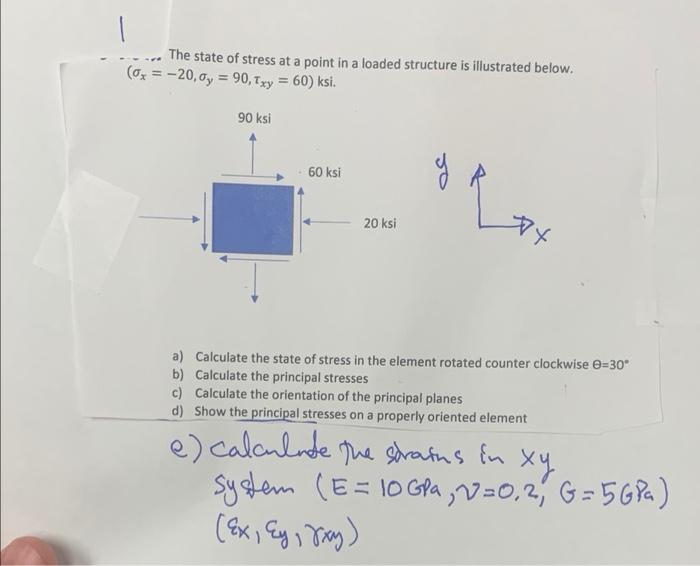

The state of stress at a point in a loaded structure is illustrated below. (Ox = -20,0y = 90,Txy = 60) ksi. 90 ksi 60 ksi 20 ksi AX a) Calculate the state of stress in the element rotated counter clockwise O=30 b) Calculate the principal stresses c) Calculate the orientation of the principal planes d) Show the principal stresses on a properly oriented element e) calculate the strains in ху, System (E = 10 Gpa, V=0,2; G=5GPa) (Ex, Ey, 8xy)
