Question 2. (4 points) In the design of a control mechanism, the vertical slotted guide is moving with a constant veloci

[answerhappygod]

Question 2 4 Points In The Design Of A Control Mechanism The Vertical Slotted Guide Is Moving With A Constant Veloci 1 (172.23 KiB) Viewed 100 times

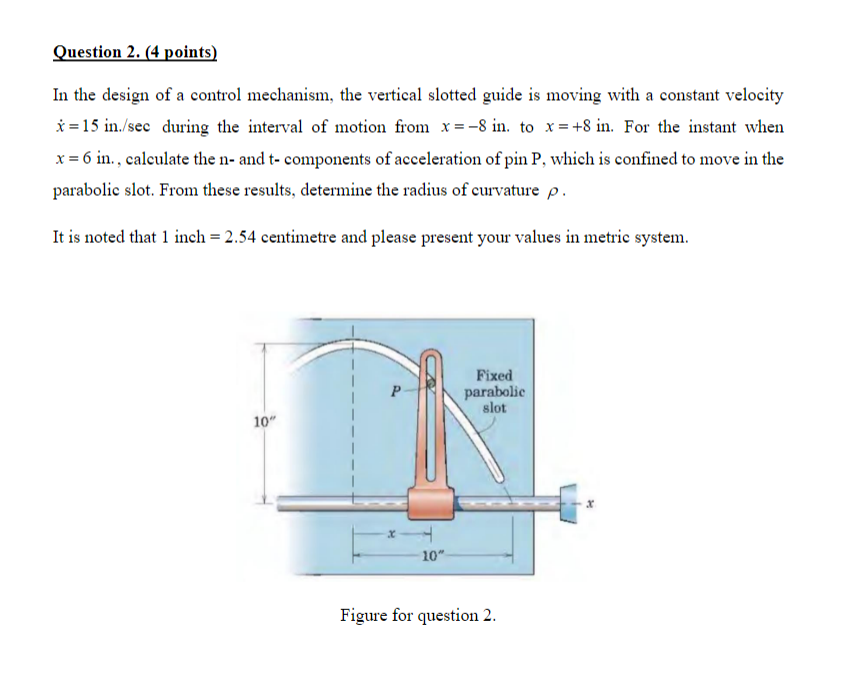

Question 2. (4 points) In the design of a control mechanism, the vertical slotted guide is moving with a constant velocity * = 15 in./sec during the interval of motion from x=-8 in. to x = +8 in. For the instant when x = 6 in. , calculate the n- and t- components of acceleration of pin P, which is confined to move in the parabolic slot. From these results, determine the radius of curvature p. It is noted that 1 inch = 2.54 centimetre and please present your values in metric system. Р Fixed parabolic slot 10" 10" Figure for question 2.
