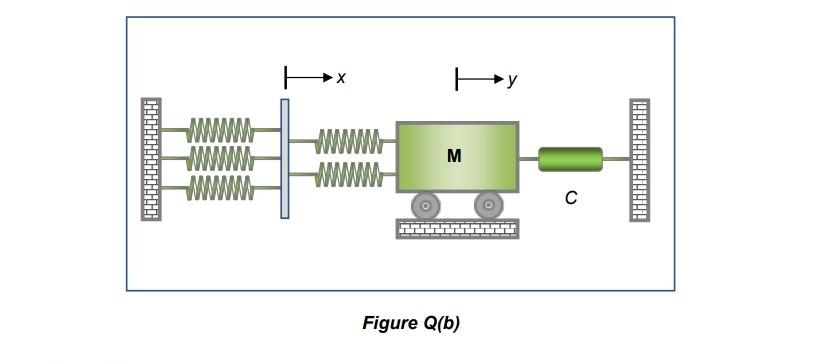

H у H M =9-1 с Figure Q(b)

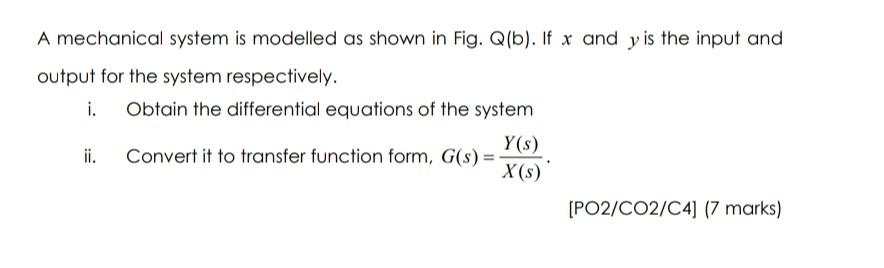

A mechanical system is modelled as shown in Fig. Q(b). If x and y is the input and output for the system respectively. i. Obtain the differential equations of the system ii. Y(s) Convert it to transfer function form, G(s) = X(S) [PO2/CO2/C4] (7 marks)
