2 A simply supported beam, of diameter 12 mm, is loaded as shown in Fig. 7.18. Using double integration method, determin

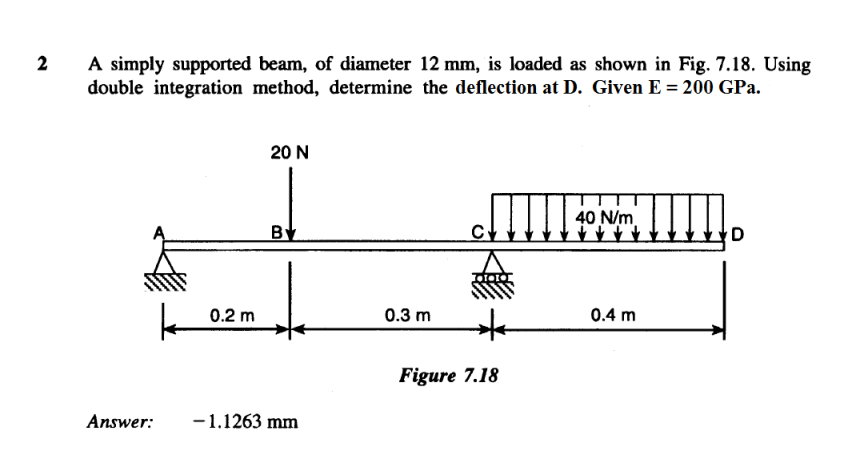

2 A simply supported beam, of diameter 12 mm, is loaded as shown in Fig. 7.18. Using double integration method, determine the deflection at D. Given E = 200 GPa. 20 N 40 N/m BT 0.2 m 0.3 m 未 0.4 m Figure 7.18 Answer: - 1.1263 mm
