Consider a vane mounted on a moving cart. A water jet strikes the vane with a velocity of V;= 20 m/s and is deflected by

Post by answerhappygod »

Consider A Vane Mounted On A Moving Cart A Water Jet Strikes The Vane With A Velocity Of V 20 M S And Is Deflected By 1
Consider A Vane Mounted On A Moving Cart A Water Jet Strikes The Vane With A Velocity Of V 20 M S And Is Deflected By 1 (363.92 KiB) Viewed 50 times

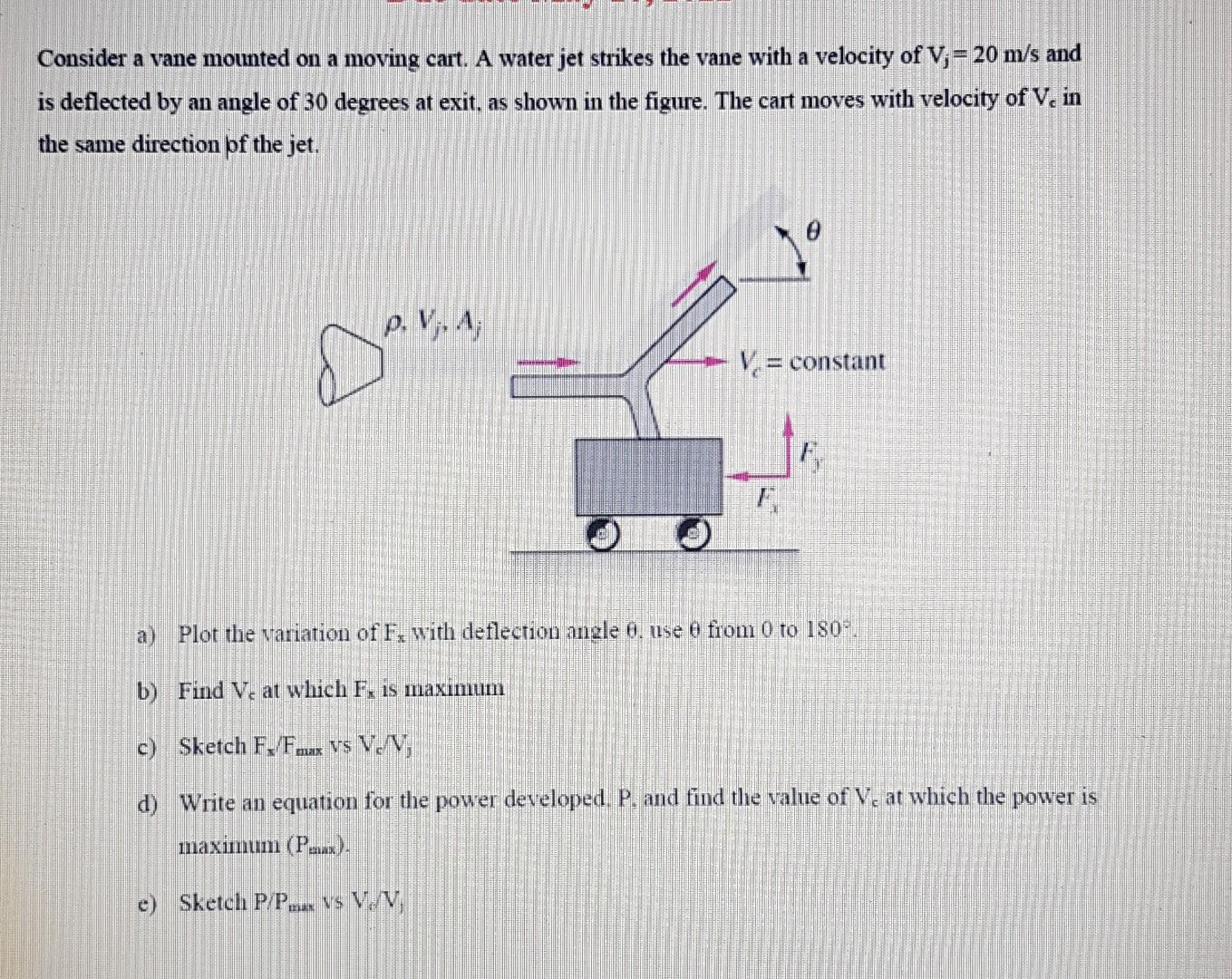

Consider a vane mounted on a moving cart. A water jet strikes the vane with a velocity of V;= 20 m/s and is deflected by an angle of 30 degrees at exit, as shown in the figure. The cart moves with velocity of V. in the same direction pf the jet. P. V;. A; V = constant F F a) Plot the variation of Fx with deflection angle 8. use o from 0 to 180°. b) Find Ve at which F, is maximum c) Sketch Fz/Fmar vs V.V, d) Write an equation for the power developed. P. and find the value of Vc at which the power is maximum (P). c) Sketch P/P... vs V/V
