- K S 20 S S 1 S 10 Figure 011 Question 14 Sketch The Root Locus Of The System Of Figure Q11 Consider All Important F 1 (14.15 KiB) Viewed 47 times
- K S 20 S S 1 S 10 Figure 011 Question 14 Sketch The Root Locus Of The System Of Figure Q11 Consider All Important F 2 (19.34 KiB) Viewed 47 times

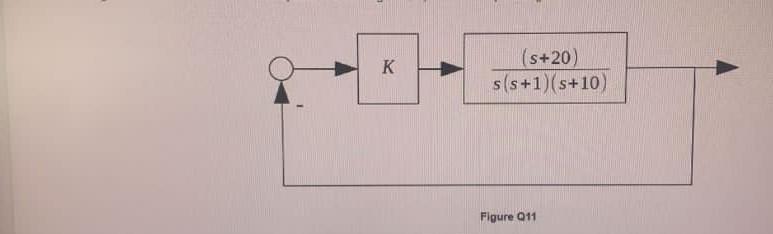

K (s+20) s(s+1)(s+10 Figure 011

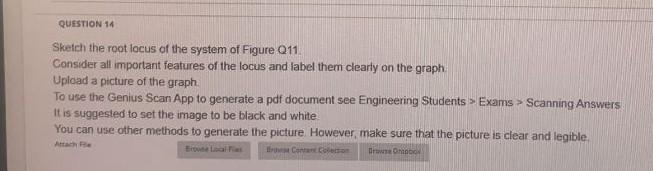

QUESTION 14 Sketch the root locus of the system of Figure Q11 Consider all important features of the locus and label them clearly on the graph Upload a picture of the graph. To use the Genius Scan App to generate a pdf document see Engineering Students > Exams > Scanning Answers It is suggested to set the image to be black and white You can use other methods to generate the picture. However, make sure that the picture is clear and legible. Coco Debo
