QUESTION 11 The block diagram of a mechanical transmission system shown in Figure 011, where K is a positive gain K (s+2

[answerhappygod]

Question 11 The Block Diagram Of A Mechanical Transmission System Shown In Figure 011 Where K Is A Positive Gain K S 2 1 (22.49 KiB) Viewed 39 times

Question 11 The Block Diagram Of A Mechanical Transmission System Shown In Figure 011 Where K Is A Positive Gain K S 2 2 (36.12 KiB) Viewed 39 times

solve these parts figure 11 given above
solve q12 and 13

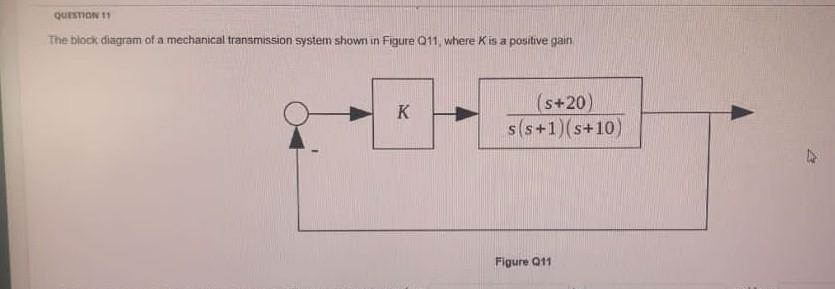

QUESTION 11 The block diagram of a mechanical transmission system shown in Figure 011, where K is a positive gain K (s+20) s(s+1)(s+10) Figure Q11

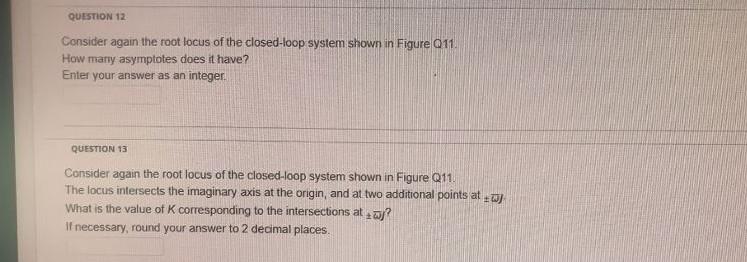

QUESTION 12 Consider again the root locus of the closed-loop system shown in Figure 011 How many asymptotes does it have? Enter your answer as an integer. QUESTION 13 Consider again the root locus of the closed-loop system shown in Figure Q11. The locus intersects the imaginary axis at the origin, and at two additional points at : What is the value of K corresponding to the intersections at 10? If necessary, round your answer to 2 decimal places
