a. Please solve the frame of the static system presented below. Make out the bending moment diagram (M), the shearing fo

Post by answerhappygod »

A Please Solve The Frame Of The Static System Presented Below Make Out The Bending Moment Diagram M The Shearing Fo 1
A Please Solve The Frame Of The Static System Presented Below Make Out The Bending Moment Diagram M The Shearing Fo 1 (38.51 KiB) Viewed 39 times

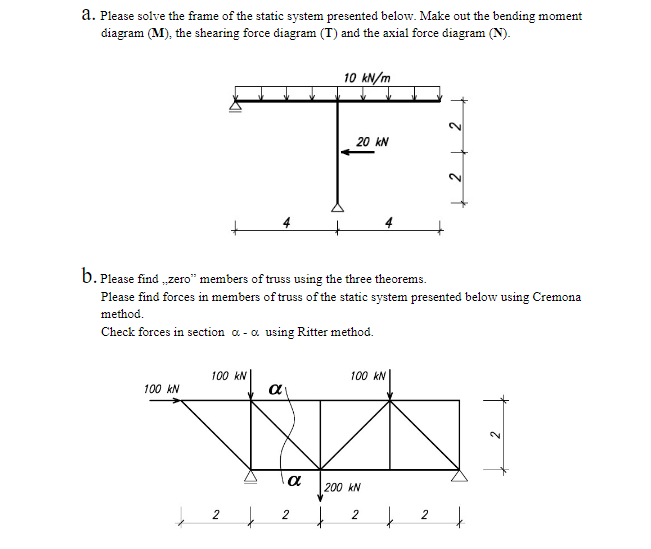

a. Please solve the frame of the static system presented below. Make out the bending moment diagram (M), the shearing force diagram (1) and the axial force diagram (N). 10 kN/m 7 20 KN 4 b. Please find „zero” members of truss using the three theorems. Please find forces in members of truss of the static system presented below using Cremona method. Check forces in section a.- a. using Ritter method. 100 KN 100 KN 100 KN a 可不 2 KA a 200 KN 2 2 2 2 t
