5.34 Cycloidal motion. For Problems 5.32 through 5.36 A follower rises 50 mm in 120° of cam rotation, dwells for 60, ret

Post by answerhappygod »

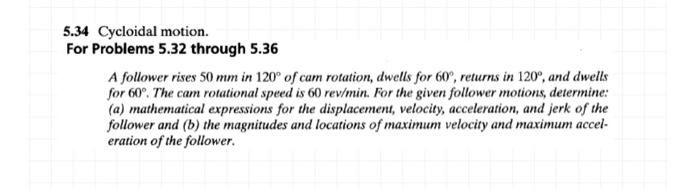

5 34 Cycloidal Motion For Problems 5 32 Through 5 36 A Follower Rises 50 Mm In 120 Of Cam Rotation Dwells For 60 Ret 1
5 34 Cycloidal Motion For Problems 5 32 Through 5 36 A Follower Rises 50 Mm In 120 Of Cam Rotation Dwells For 60 Ret 1 (19.96 KiB) Viewed 40 times
5.34 Cycloidal motion. For Problems 5.32 through 5.36 A follower rises 50 mm in 120° of cam rotation, dwells for 60, returns in 120°, and dwells for 60°. The cam rotational speed is 60 rev/min. For the given follower motions, determine: (a) mathematical expressions for the displacement, velocity, acceleration, and jerk of the follower and (b) the magnitudes and locations of maximum velocity and maximum accel- eration of the follower.
