In-class test 1 I A simply supported beam of square cross-section of side 100mm with a uniform distributed loading of 3k

Post by answerhappygod »

In Class Test 1 I A Simply Supported Beam Of Square Cross Section Of Side 100mm With A Uniform Distributed Loading Of 3k 1
In Class Test 1 I A Simply Supported Beam Of Square Cross Section Of Side 100mm With A Uniform Distributed Loading Of 3k 1 (493.13 KiB) Viewed 51 times

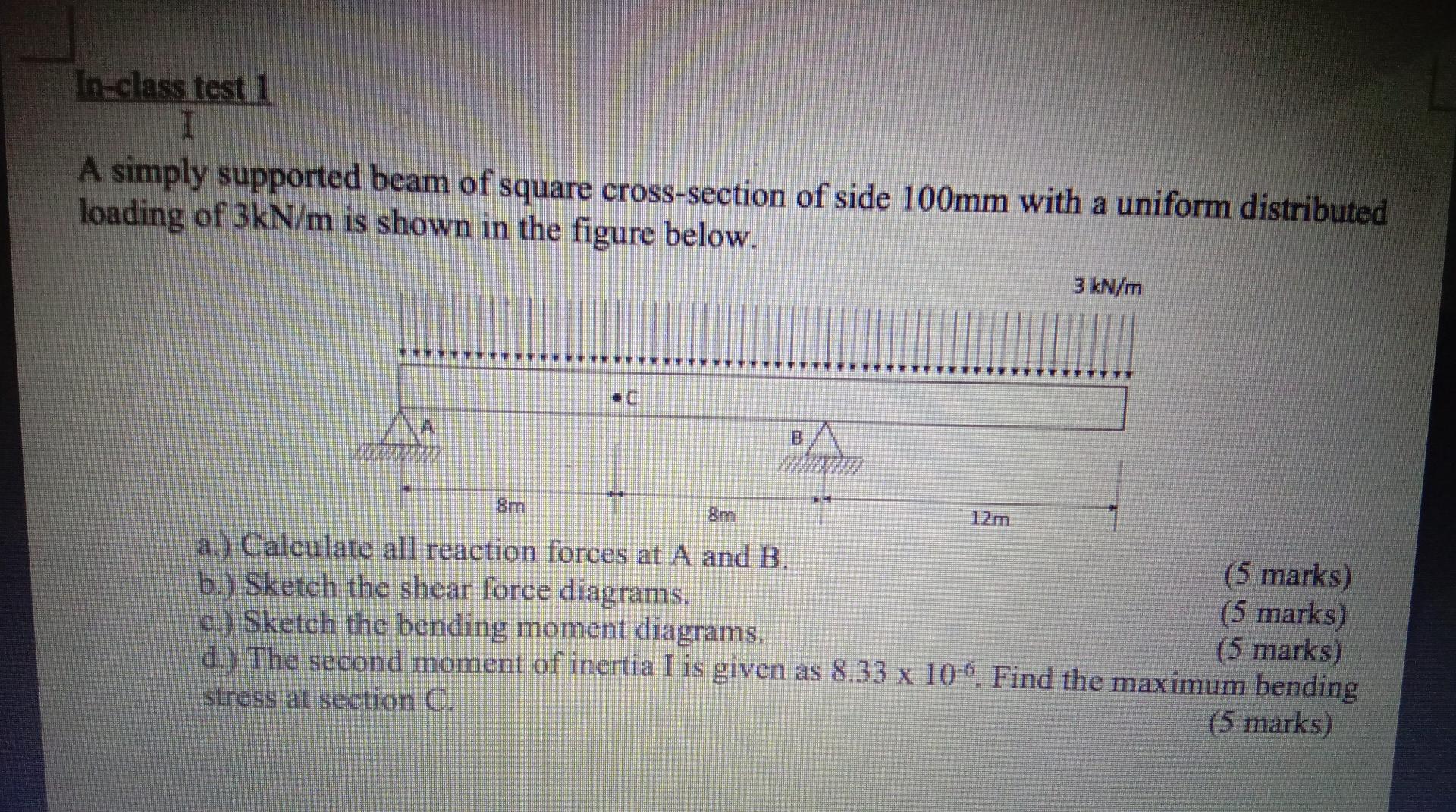

In-class test 1 I A simply supported beam of square cross-section of side 100mm with a uniform distributed loading of 3kN/m is shown in the figure below. 3 kN/m B om Bm 12m a.) Calculate all reaction forces at A and B. (5 marks) b.) Sketch the shear force diagrams. (5 marks) c.) Sketch the bending moment diagrams, (5 marks) d.) The second moment of inertia I is given as 8.33 x 10-6. Find the maximum bending stress at section C. (5 marks)
