Q3 1) Draw the bending moment and shear force diagrams of the following structure as figure 3 shows (15 points) 2) Deter

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q3 1) Draw the bending moment and shear force diagrams of the following structure as figure 3 shows (15 points) 2) Deter

Post by answerhappygod »

Q3 1 Draw The Bending Moment And Shear Force Diagrams Of The Following Structure As Figure 3 Shows 15 Points 2 Deter 1
Q3 1 Draw The Bending Moment And Shear Force Diagrams Of The Following Structure As Figure 3 Shows 15 Points 2 Deter 1 (50.12 KiB) Viewed 68 times

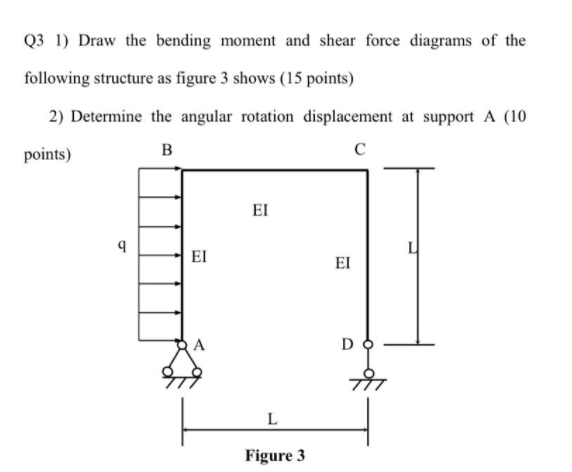

Q3 1) Draw the bending moment and shear force diagrams of the following structure as figure 3 shows (15 points) 2) Determine the angular rotation displacement at support A (10 points) B с EI 4 EI EI D गी L Figure 3
