18 teeth Figure P1 A 10 teeth B 3 35 teeth 5 D 54 teeth C 7 7 Worm gear 48 teeth : 6 Double-thread Right-handed Worm Pro

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

18 teeth Figure P1 A 10 teeth B 3 35 teeth 5 D 54 teeth C 7 7 Worm gear 48 teeth : 6 Double-thread Right-handed Worm Pro

Post by answerhappygod »

18 Teeth Figure P1 A 10 Teeth B 3 35 Teeth 5 D 54 Teeth C 7 7 Worm Gear 48 Teeth 6 Double Thread Right Handed Worm Pro 1
18 Teeth Figure P1 A 10 Teeth B 3 35 Teeth 5 D 54 Teeth C 7 7 Worm Gear 48 Teeth 6 Double Thread Right Handed Worm Pro 1 (56.39 KiB) Viewed 44 times

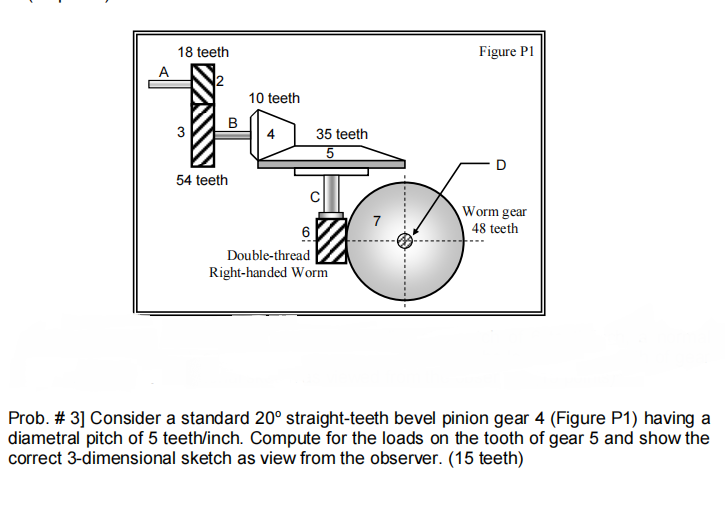

18 teeth Figure P1 A 10 teeth B 3 35 teeth 5 D 54 teeth C 7 7 Worm gear 48 teeth : 6 Double-thread Right-handed Worm Prob. # 3] Consider a standard 20° straight-teeth bevel pinion gear 4 (Figure P1) having a diametral pitch of 5 teeth/inch. Compute for the loads on the tooth of gear 5 and show the correct 3-dimensional sketch as view from the observer. (15 teeth)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
