A fixed-end beam AB carries point load P acting at point C. The beam has a rectangular cross section (b = 80 mm, h = 180

[answerhappygod]

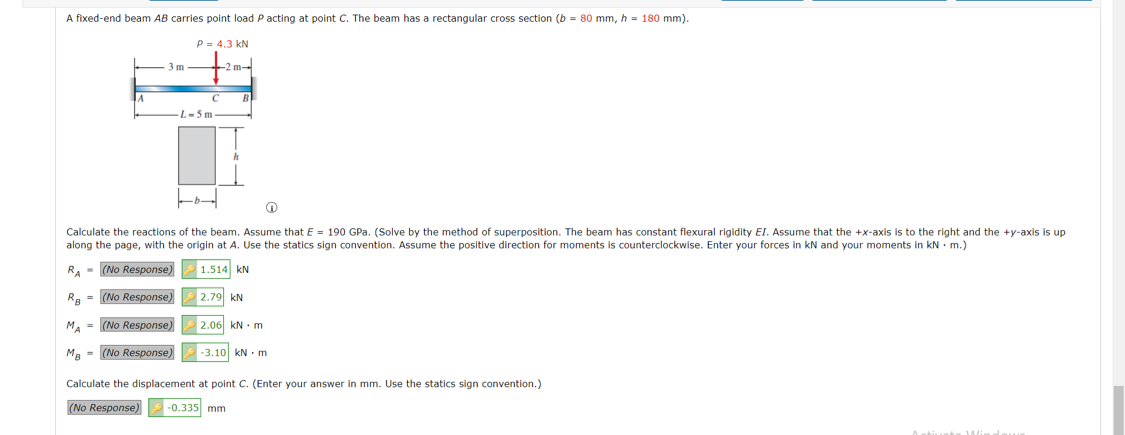

A Fixed End Beam Ab Carries Point Load P Acting At Point C The Beam Has A Rectangular Cross Section B 80 Mm H 180 1 (93.05 KiB) Viewed 42 times

A fixed-end beam AB carries point load P acting at point C. The beam has a rectangular cross section (b = 80 mm, h = 180 mm). P = 4.3 KN 3 m --2m- A B L-5 m Calculate the reactions of the beam. Assume that E = 190 GPa (Solve by the method of superposition. The beam has constant flexural rigidity El. Assume that the +x-axis is to the right and the +y-axis is up along the page, with the origin at A. Use the statics sign convention. Assume the positive direction for moments is counterclockwise. Enter your forces in kN and your moments in km.) RA - (No Response) 1.514 KN Rg - (No Response) 2.79 KN MA = (No Response) 2.06 kNm м. (No Response) -3.10 kNm Calculate the displacement at point C. (Enter your answer in mm. Use the statics sign convention.) (No Response) -0.335 mm
