A simply supported beam (E = 12 GPa) carries a uniformly distributed load q = 100 N/m, and a point load P = 194 N at mid

Post by answerhappygod »

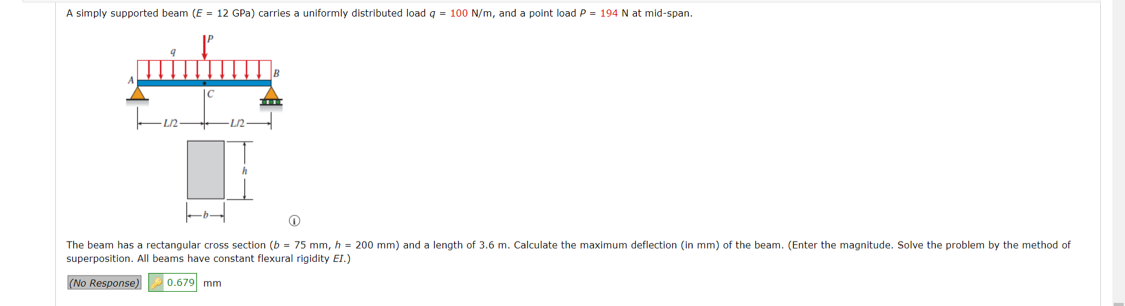

A Simply Supported Beam E 12 Gpa Carries A Uniformly Distributed Load Q 100 N M And A Point Load P 194 N At Mid 1
A Simply Supported Beam E 12 Gpa Carries A Uniformly Distributed Load Q 100 N M And A Point Load P 194 N At Mid 1 (52.66 KiB) Viewed 42 times
A simply supported beam (E = 12 GPa) carries a uniformly distributed load q = 100 N/m, and a point load P = 194 N at mid-span. uninfo LA The beam has a rectangular cross section (b = 75 mm, h = 200 mm) and a length of 3.6 m. Calculate the maximum deflection (in mm) of the beam. (Enter the magnitude. Solve the problem by the method of superposition. All beams have constant flexural rigidity EI.) (No Response) 0.679 mm
