A steel beam is built up from a W 410 x 85 wide flange beam and two 180 mm x 9 mm cover plates (see figure). 180 mm x 9

Post by answerhappygod »

A Steel Beam Is Built Up From A W 410 X 85 Wide Flange Beam And Two 180 Mm X 9 Mm Cover Plates See Figure 180 Mm X 9 1
A Steel Beam Is Built Up From A W 410 X 85 Wide Flange Beam And Two 180 Mm X 9 Mm Cover Plates See Figure 180 Mm X 9 1 (50.15 KiB) Viewed 30 times

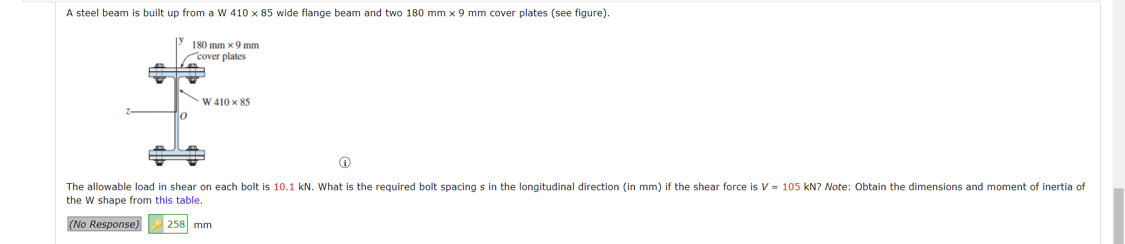

A steel beam is built up from a W 410 x 85 wide flange beam and two 180 mm x 9 mm cover plates (see figure). 180 mm x 9 mm cover plates A W 410 x 85 lo The allowable load in shear on each bolt is 10.1 kN. What is the required bolt spacing s in the longitudinal direction (in mm) if the shear force is V = 105 kN? Note: Obtain the dimensions and moment of inertia of the W shape from this table. (No Response) 258 mm
