Shaft d is rotating 1200 rpm and transmitting 2.5 Hp to shaft e through helical gears shown. Shaft a is rotating in a cl

[answerhappygod]

Shaft D Is Rotating 1200 Rpm And Transmitting 2 5 Hp To Shaft E Through Helical Gears Shown Shaft A Is Rotating In A Cl 1 (52.34 KiB) Viewed 56 times

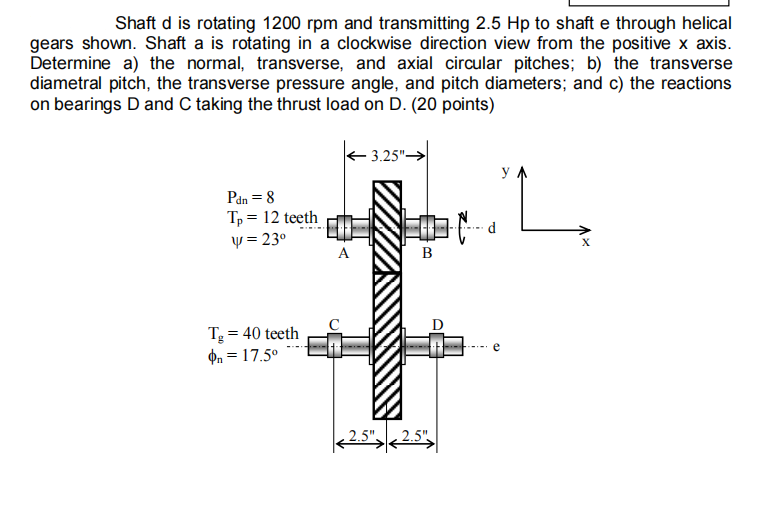

Shaft d is rotating 1200 rpm and transmitting 2.5 Hp to shaft e through helical gears shown. Shaft a is rotating in a clockwise direction view from the positive x axis. Determine a) the normal, transverse, and axial circular pitches; b) the transverse diametral pitch, the transverse pressure angle, and pitch diameters; and c) the reactions on bearings D and C taking the thrust load on D. (20 points) 3.25"- у Pan = 8 Tp = 12 teeth v=230 X A B B D Tg = 40 teeth 4. = 17.5° e 2.5"> |2.5"
