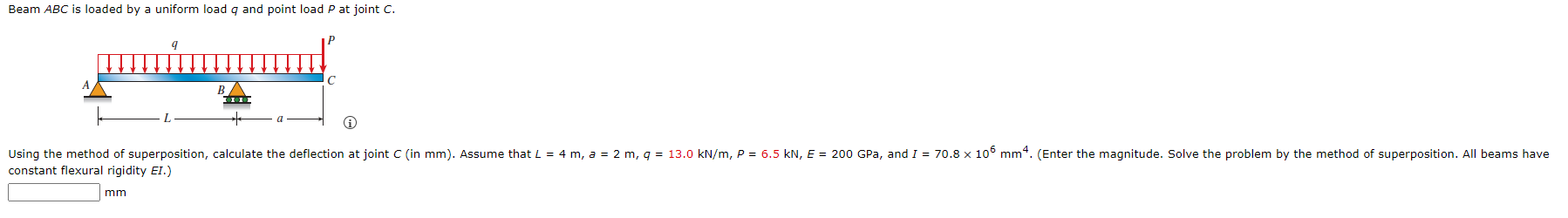

Beam ABC is loaded by a uniform load q and point load P at joint C. 9 HTTLIITITTITTI с B Using the method of superpositi

[answerhappygod]

1 (18.25 KiB) Viewed 42 times

Beam ABC is loaded by a uniform load q and point load P at joint C. 9 HTTLIITITTITTI с B Using the method of superposition, calculate the deflection at joint C (in mm). Assume that L = 4 m, a = 2 m, 9 = 13.0 kN/m, P = 6.5 kN, E = 200 GPa, and I = 70.8 x 106 mm 4. (Enter the magnitude. Solve the problem by the method of superposition. All beams have constant flexural rigidity EI.) mm
