A laminated plastic beam of square cross section is built up by gluing together three strips, each 10 mm x 30 mm in cros

[answerhappygod]

A Laminated Plastic Beam Of Square Cross Section Is Built Up By Gluing Together Three Strips Each 10 Mm X 30 Mm In Cros 1 (29.35 KiB) Viewed 46 times

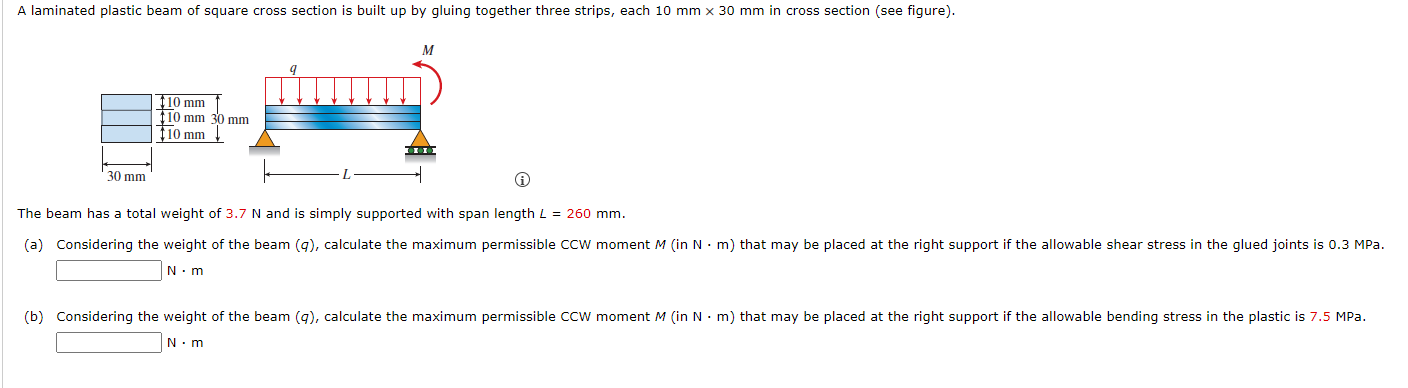

A laminated plastic beam of square cross section is built up by gluing together three strips, each 10 mm x 30 mm in cross section (see figure). M 9 110 mm 110 mm 30 mm 110 mm 30 mm The beam has a total weight of 3.7 N and is simply supported with span length L = 260 mm. (a) Considering the weight of the beam (9), calculate the maximum permissible ccw moment M in N·m) that may be placed at the right support if the allowable shear stress in the glued joints is 0.3 MPa. N·m (b) Considering the weight of the beam (9), calculate the maximum permissible CCW moment M in N.m) that may be placed at the right support if the allowable bending stress in the plastic is 7.5 MPa. N·m
