Question 1 Below is the cross section of a boat that is experiencing a load of 1000 N over the side (On the beam install

Post by answerhappygod »

Question 1 Below Is The Cross Section Of A Boat That Is Experiencing A Load Of 1000 N Over The Side On The Beam Install 1
Question 1 Below Is The Cross Section Of A Boat That Is Experiencing A Load Of 1000 N Over The Side On The Beam Install 1 (83.83 KiB) Viewed 55 times

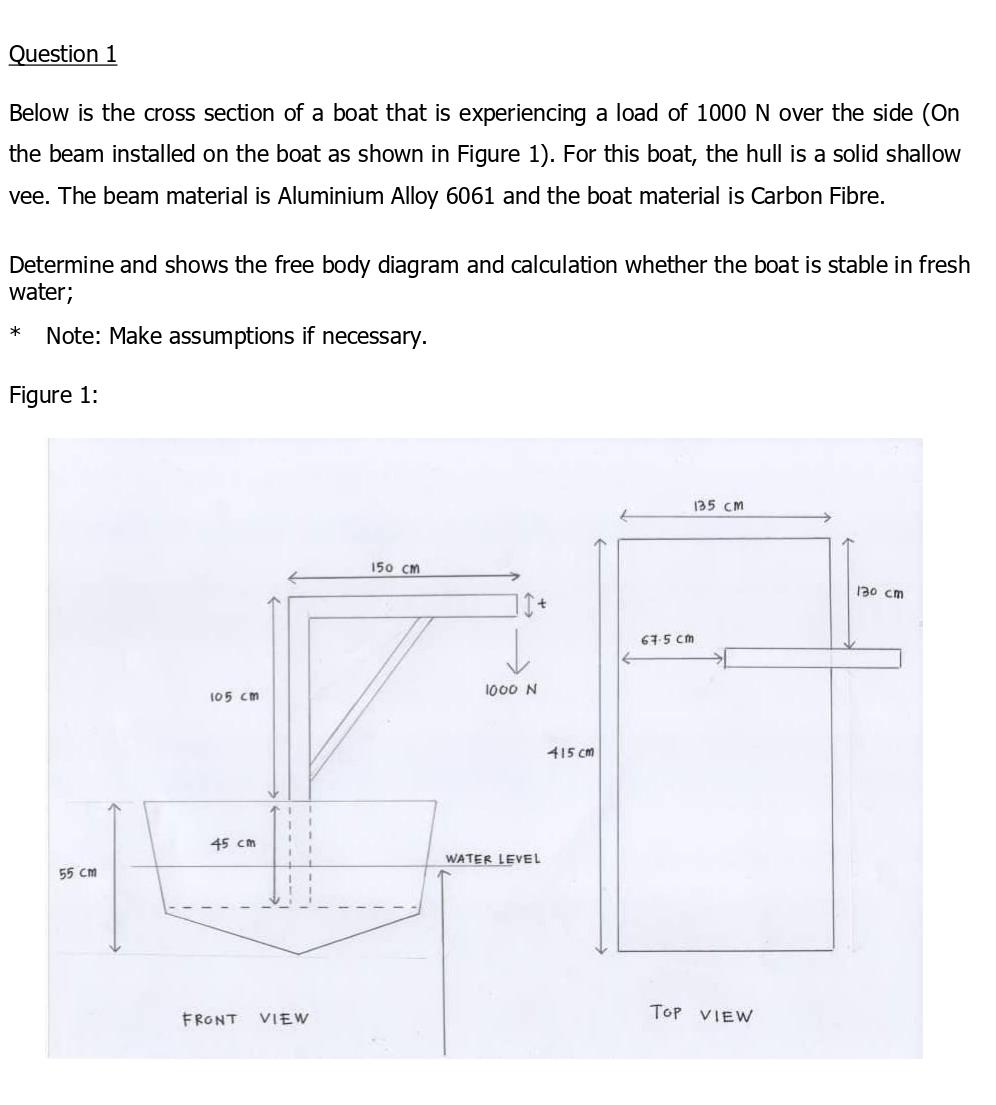

Question 1 Below is the cross section of a boat that is experiencing a load of 1000 N over the side (On the beam installed on the boat as shown in Figure 1). For this boat, the hull is a solid shallow vee. The beam material is Aluminium Alloy 6061 and the boat material is Carbon Fibre. Determine and shows the free body diagram and calculation whether the boat is stable in fresh water; * Note: Make assumptions if necessary. Figure 1: 135 CM 150 CM 120 cm 10+ 67.5 cm 1 1000 N 105 cm 415 cm 45 cm WATER LEVEL 55 CM FRONT VIEW TOP VIEW
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
