in detail please, as you can

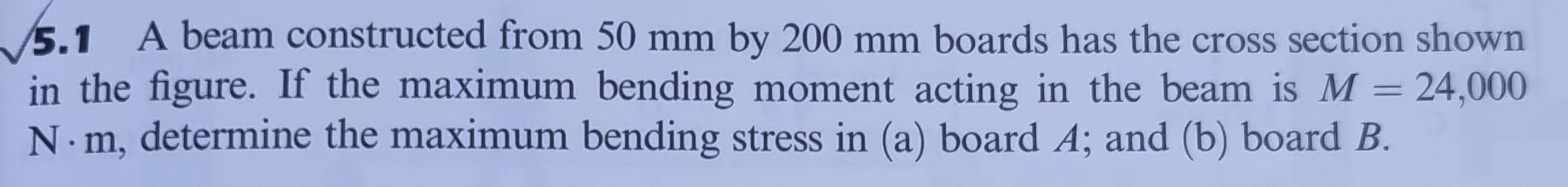

5.1 A beam constructed from 50 mm by 200 mm boards has the cross section shown in the figure. If the maximum bending moment acting in the beam is M = 24,000 N.m, determine the maximum bending stress in (a) board A; and (b) board B. =

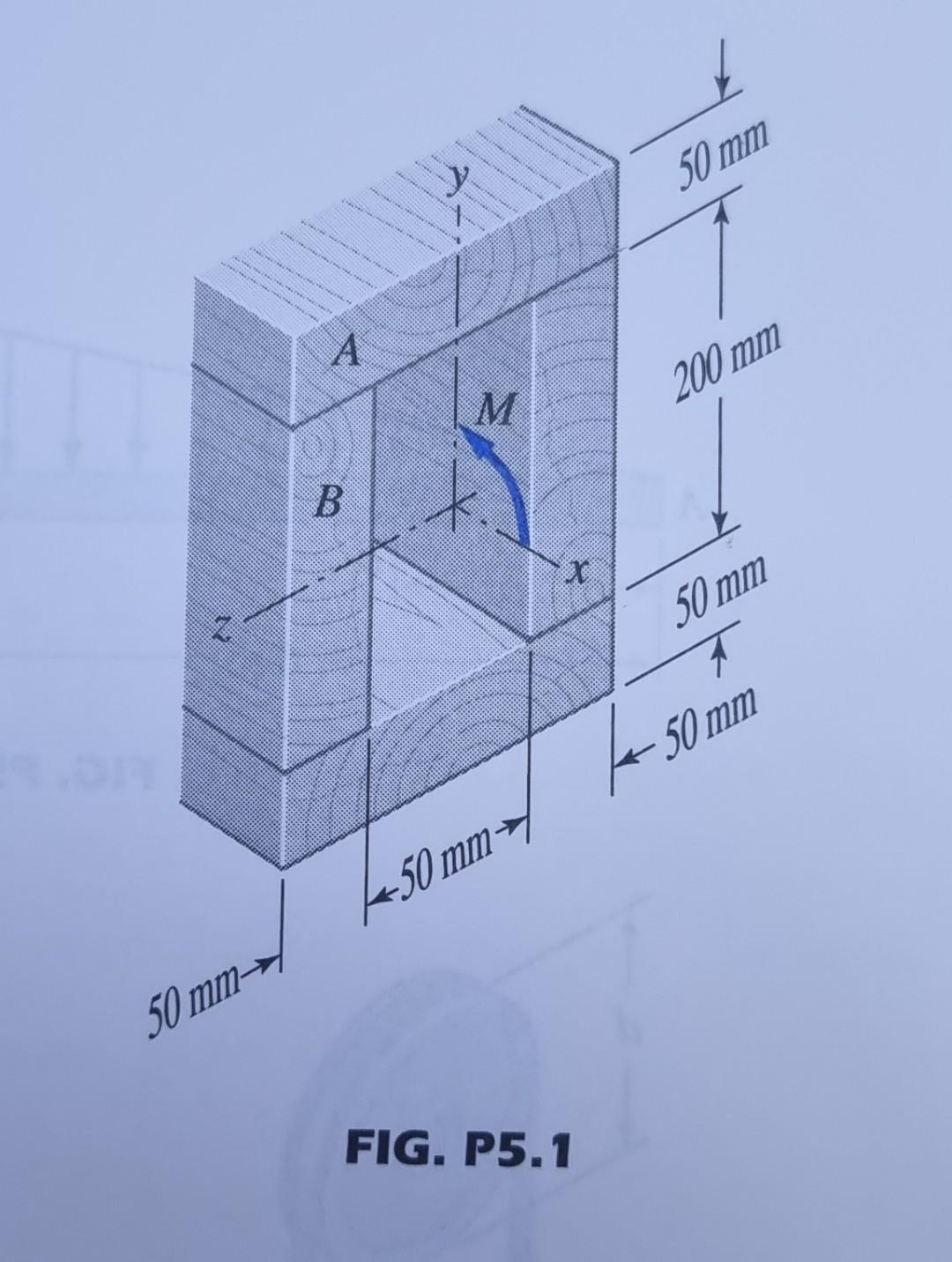

50 mm A 200 mm M B 2 50 mm K + 50 mm 450 mm 50 mm FIG. P5.1
