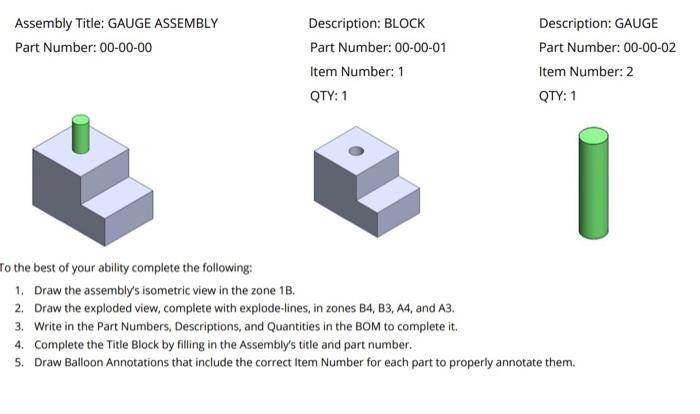

Assembly Title: GAUGE ASSEMBLY Part Number: 00-00-00 Description: BLOCK Part Number: 00-00-01 Item Number: 1 QTY: 1 Description: GAUGE Part Number: 00-00-02 Item Number: 2 QTY: 1 To the best of your ability complete the following: 1. Draw the assembly's isometric view in the zone 18. 2. Draw the exploded view, complete with explode-lines, in zones B4, B3, A4, and A3. 3. Write in the Part Numbers, Descriptions, and Quantities in the BOM to complete it. 4. Complete the Title Block by filling in the Assembly's title and part number. 5. Draw Balloon Annotations that include the correct Item Number for each part to properly annotate them.

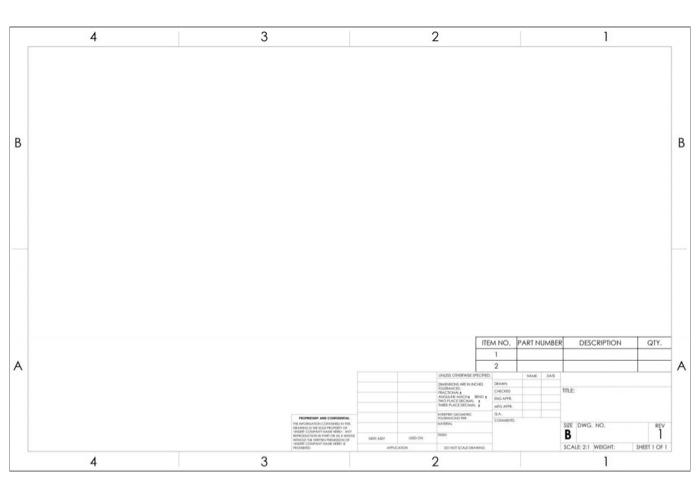

3 2 B B ITEM NO PART NUMBER DESCRIPON QIY A 2 A SOWGHO 1 10 4 3 SCALE. WE 1 2 N

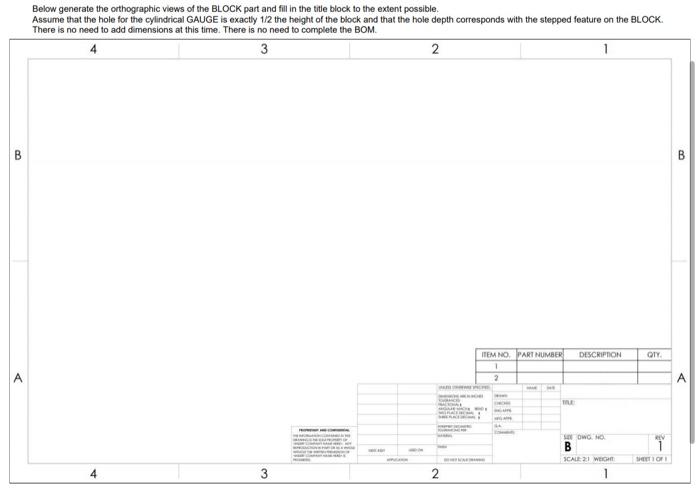

Below generate the orthographic views of the BLOCK part and fill in the title block to the extent possible Assume that the hole for the cylindrical GAUGE is exactly 1/2 the height of the block and that the hole depth corresponds with the stepped feature on the BLOCK There is no need to add dimensions at this time. There is no need to complete the BOM 3 2 1 B 00 B ITEM NO PART NUMBER DESCRIPTION QIY A 2 A OWO B SCALE I WE co 1 OF 4 3 2
