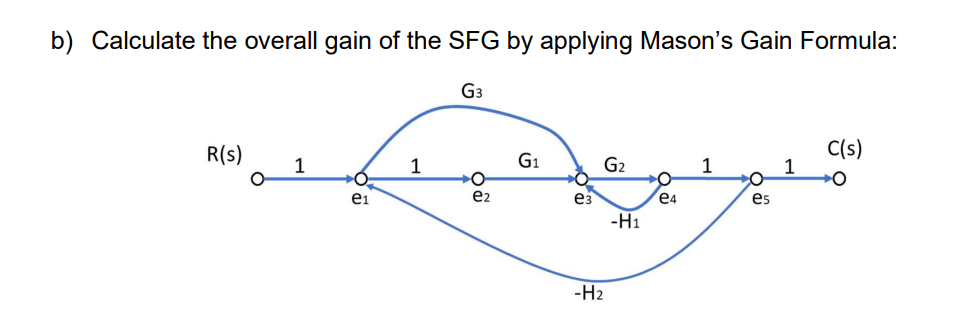

b) Calculate the overall gain of the SFG by applying Mason's Gain Formula: G3 R(s) C(s) 1 1 G1 G2 1 1 ei e2 ез e4 es -H1
