Question 1: Design the basic ECL (IQ, IC and VR) logic gate in Figure 1 such that the maximum power dissipation is 0.2 m

Post by answerhappygod »

Question 1:
Design the basic ECL (IQ, IC and VR) logic gate in Figure 1 such
that the maximum power dissipation is 0.2 mW and the logic swing is
0.4 V. [10 Marks]
[Hint: Logic swing is the voltage difference between logic
HIGH and LOW]

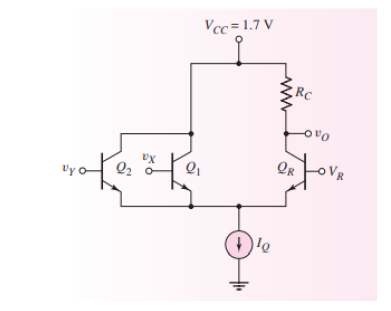

Question 1 Design The Basic Ecl Iq Ic And Vr Logic Gate In Figure 1 Such That The Maximum Power Dissipation Is 0 2 M 1
Question 1 Design The Basic Ecl Iq Ic And Vr Logic Gate In Figure 1 Such That The Maximum Power Dissipation Is 0 2 M 1 (30.22 KiB) Viewed 28 times
Use activation voltage π‘½πœΈ(π’…π’Šπ’π’…π’†)= 0.6V, π‘½πœΈ(π’•π’“π’‚π’π’”π’Šπ’”π’•π’π’“)=
0.5V, 𝑽𝑩𝑬 (π’‡π’π’“π’˜π’‚π’“π’… π’‚π’„π’•π’Šπ’—π’†)=𝟎.πŸ•π‘½, 𝑽𝑫=𝟎.πŸ•π‘½ π‘Žπ‘›π‘‘ 𝑽𝑩𝑬(𝒔𝒂𝒕)=𝟎.πŸ– 𝑽 for all
the questions.
Vcc=1.7 V 'Rc -ovo VO UX *** ya Q2 OR OVR
