A pulley with diameter of 10 inch rotates 1,192 RPM clockwise, and transmits 32 hp to another pulley with diameter of 28

Post by answerhappygod »

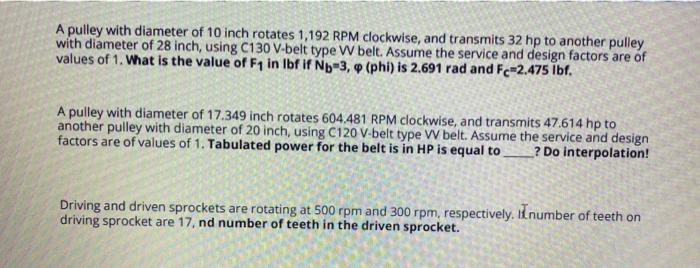

A Pulley With Diameter Of 10 Inch Rotates 1 192 Rpm Clockwise And Transmits 32 Hp To Another Pulley With Diameter Of 28 1
A Pulley With Diameter Of 10 Inch Rotates 1 192 Rpm Clockwise And Transmits 32 Hp To Another Pulley With Diameter Of 28 1 (41.34 KiB) Viewed 51 times
A pulley with diameter of 10 inch rotates 1,192 RPM clockwise, and transmits 32 hp to another pulley with diameter of 28 inch, using C130 V-belt type W belt. Assume the service and design factors are of values of 1. What is the value of F1 in lbf if Nb-3, (phi) is 2.691 rad and Fe=2.475 Ibf. A pulley with diameter of 17.349 inch rotates 604.481 RPM clockwise, and transmits 47.614 hp to another pulley with diameter of 20 inch, using C120 V-belt type W belt. Assume the service and design factors are of values of 1. Tabulated power for the belt is in HP is equal to _? Do interpolation! Driving and driven sprockets are rotating at 500 rpm and 300 rpm, respectively. I number of teeth on driving sprocket are 17nd number of teeth in the driven sprocket.
