2/3 100% + 10 A sprocket with diameter of 6 inch and number of teeth of 17 rotates 400 RPM clockwise, and transmits 35 h

[answerhappygod]

2 3 100 10 A Sprocket With Diameter Of 6 Inch And Number Of Teeth Of 17 Rotates 400 Rpm Clockwise And Transmits 35 H 1 (44.41 KiB) Viewed 61 times

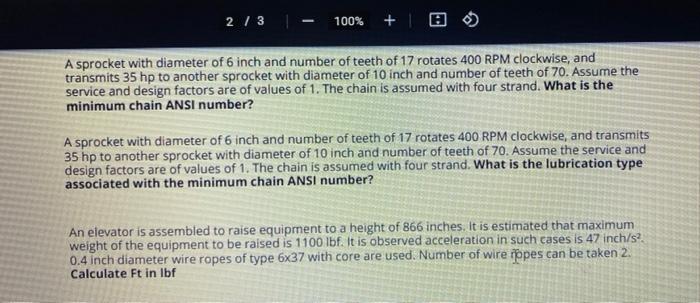

2/3 100% + 10 A sprocket with diameter of 6 inch and number of teeth of 17 rotates 400 RPM clockwise, and transmits 35 hp to another sprocket with diameter of 10 inch and number of teeth of 70. Assume the service and design factors are of values of 1. The chain is assumed with four strand. What is the minimum chain ANSI number? A sprocket with diameter of 6 inch and number of teeth of 17 rotates 400 RPM clockwise, and transmits 35 hp to another sprocket with diameter of 10 inch and number of teeth of 70. Assume the service and design factors are of values of 1. The chain is assumed with four strand. What is the lubrication type associated with the minimum chain ANSI number? An elevator is assembled to raise equipment to a height of 866 inches. It is estimated that maximum weight of the equipment to be raised is 1100 lbf. It is observed acceleration in such cases is 47 inch/s. 0.4 inch diameter wire ropes of type 6x37 with core are used. Number of wire ropes can be taken 2. Calculate Ft in lbf
