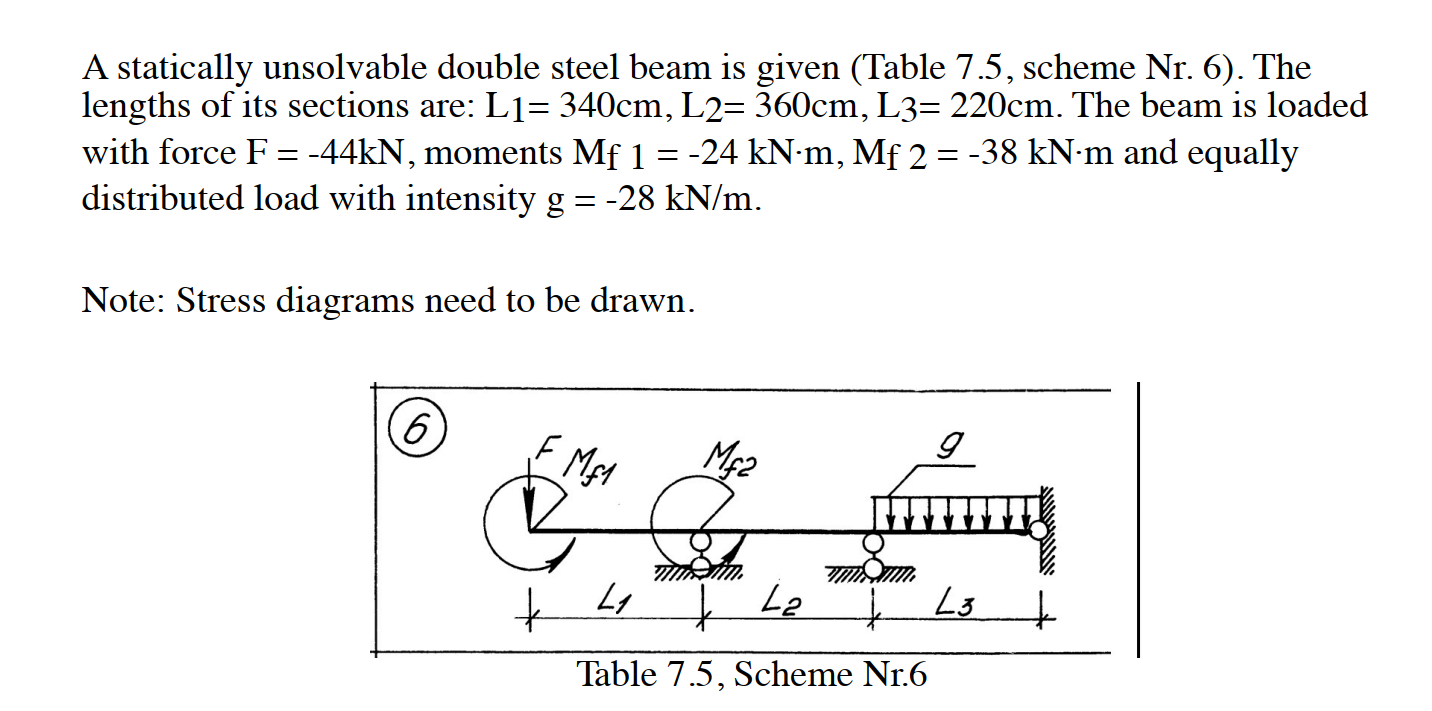

A statically unsolvable double steel beam is given (Table 7.5, scheme Nr. 6). The lengths of its sections are: L1= 340cm
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A statically unsolvable double steel beam is given (Table 7.5, scheme Nr. 6). The lengths of its sections are: L1= 340cm
A statically unsolvable double steel beam is given (Table 7.5, scheme Nr. 6). The lengths of its sections are: L1= 340cm, L2= 360cm, L3= 220cm. The beam is loaded with force F = -44kN, moments Mf 1 = -24 kN-m, Mf 2 = -38 kN-m and equally distributed load with intensity g = -28 kN/m. - = = Note: Stress diagrams need to be drawn. 6 F Mf1 Mca 9 moth. t 4 t La Table 7.5, Scheme Nr.6 t Lo t >
