Question 14 1 out of 1 points Calculate the NPSH-A of a pump used for transporting water at rate of 2 m3/minute. The los

[answerhappygod]

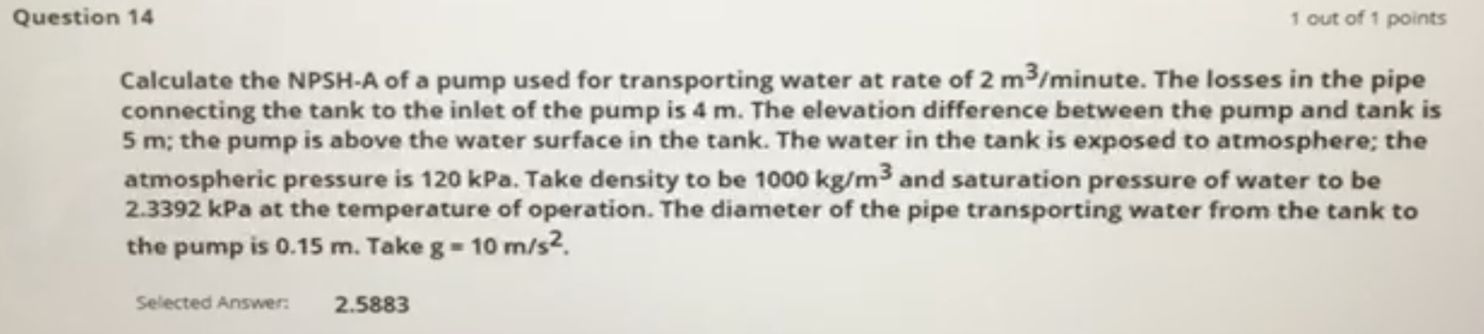

Question 14 1 Out Of 1 Points Calculate The Npsh A Of A Pump Used For Transporting Water At Rate Of 2 M3 Minute The Los 1 (450.04 KiB) Viewed 35 times

Question 14 1 out of 1 points Calculate the NPSH-A of a pump used for transporting water at rate of 2 m3/minute. The losses in the pipe connecting the tank to the inlet of the pump is 4 m. The elevation difference between the pump and tank is 5 m; the pump is above the water surface in the tank. The water in the tank is exposed to atmosphere; the atmospheric pressure is 120 kPa. Take density to be 1000 kg/m3 and saturation pressure of water to be 2.3392 kPa at the temperature of operation. The diameter of the pipe transporting water from the tank to the pump is 0.15 m. Take g = 10 m/s2 Selected Answer: 2.5883
