Q5) The driver and driven gases of a pressure-driven shock tube are both air at 300 K. If the diaphragm pressure ratio i

[answerhappygod]

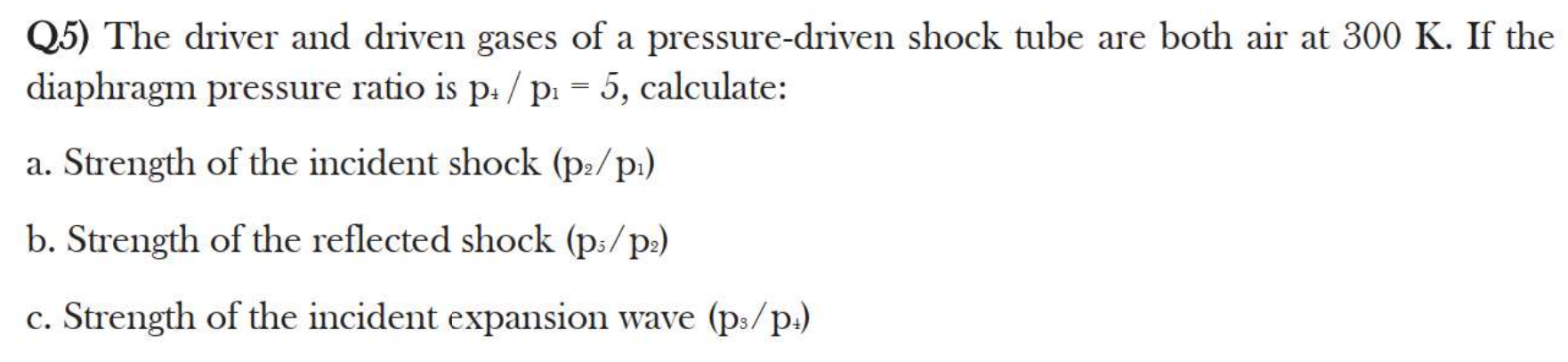

Q5 The Driver And Driven Gases Of A Pressure Driven Shock Tube Are Both Air At 300 K If The Diaphragm Pressure Ratio I 1 (418.8 KiB) Viewed 57 times

b) asking p5/p2
c) asking p3/p4
MUST BE SOLVED WITH AND WITHOUT TABLE
This is my second time the posting this question, THE PREVIOUS
SOLUTION HAD BAD RESOLUTION AND WAS UNREADABLE.
PLEASE UPLOAD IN HIGH RESOLUTION
Q5) The driver and driven gases of a pressure-driven shock tube are both air at 300 K. If the diaphragm pressure ratio is p. / p = 5, calculate: = a. Strength of the incident shock (p2/p.) b. Strength of the reflected shock (p:/p2) c. Strength of the incident expansion wave (ps/p:)
