c) Figure Q3c shows a differential amplifier with active current mirror load. By using Thevenin equivalent method, deter

Post by answerhappygod »

C Figure Q3c Shows A Differential Amplifier With Active Current Mirror Load By Using Thevenin Equivalent Method Deter 1
C Figure Q3c Shows A Differential Amplifier With Active Current Mirror Load By Using Thevenin Equivalent Method Deter 1 (23.22 KiB) Viewed 29 times

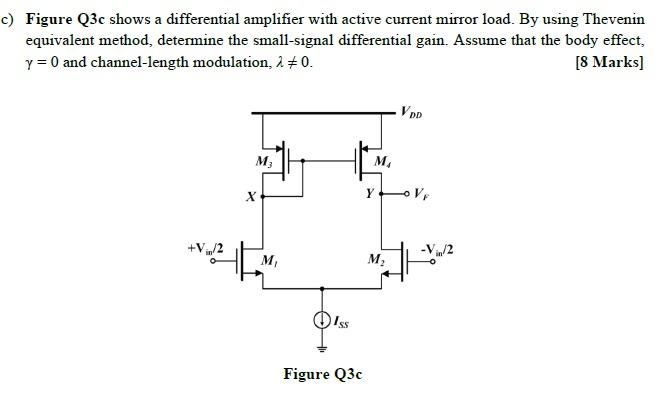

c) Figure Q3c shows a differential amplifier with active current mirror load. By using Thevenin equivalent method, determine the small-signal differential gain. Assume that the body effect, y = 0 and channel-length modulation, 1+0. [8 Marks] VD M M YOV, +V../2 M M V./2 ss Figure Q3c
